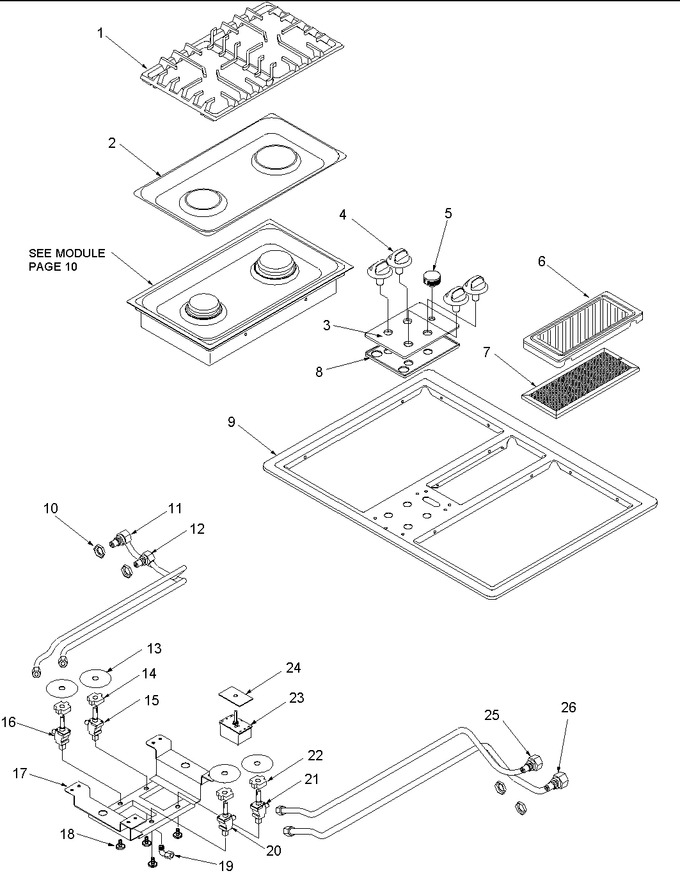

SELECT A DIAGRAM

01 - Cavity


02 - Main Top


03 - Module/cartridge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316175SY		Grate-double Cast (spk Gry) 9k		Appelez-nous	-
2	315600W		Bowl,burner-dblxxsubs To Blkx		Appelez-nous	-
3	31818502W		Glass, Cont Pnl (white)		Appelez-nous	-
4	31760505W		Knob, Top Burner (white)				$ 19.18
5	31760706W		Knob, Fan Switch (white)		Appelez-nous	-
6	316648G		Cover, Casting Vent-gas		Appelez-nous	-
7	315689B		Filter, Exhaust (blk)		Appelez-nous	-
8	315725W		Frame-glass Control Panel(wht)		Appelez-nous	-
9	31753003W		Main Top, 30`` Dd Cooktop (wht)		Appelez-nous	-
10	31750116		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
11	31752301		Assy, Tube Orifice Left Rear		Appelez-nous	-
12	31752401		Assy, Tube Orifice Left Front		Appelez-nous	-
13	Y0314316		Shield, Switch		Appelez-nous	-
14	Y0315727		Switch, Spark (270 Deg)		Appelez-nous	-
15	31755602		Valve, Gas 270deg Lr 9.7k 2800		Appelez-nous	-
16	31755702		Valve, Gas Lf 270deg 12k 3100		Appelez-nous	-
17	Y0317060		Manifold, Gas		Appelez-nous	-
18	31750703		Screw, Valve (blk)		Appelez-nous	-
19	Y0316881		Fitting, 90 Deg Elbow		Appelez-nous	-
20	31755902		Valve, Gas 270 Deg Rf 9.7k3100		Appelez-nous	-
21	31755802		Valve, Gas 270 Deg Rr 7.6k 280		Appelez-nous	-
22	Y0315728		Switch, Spark/fan		Appelez-nous	-
23	Y0316913		Control, Fan Speed Variable				$ 104.04
24	31726301		Shield, Switch-variable		Appelez-nous	-
25	31752501		Assy, Tube Orifice Right Rear		Appelez-nous	-
26	31752601		Assy, Tube Orifice Right Front		Appelez-nous	-
NI	31750415		Screw, No.8-32 X 3/8 Hex Wsh Hd		Appelez-nous	-
NI	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-
NI	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
