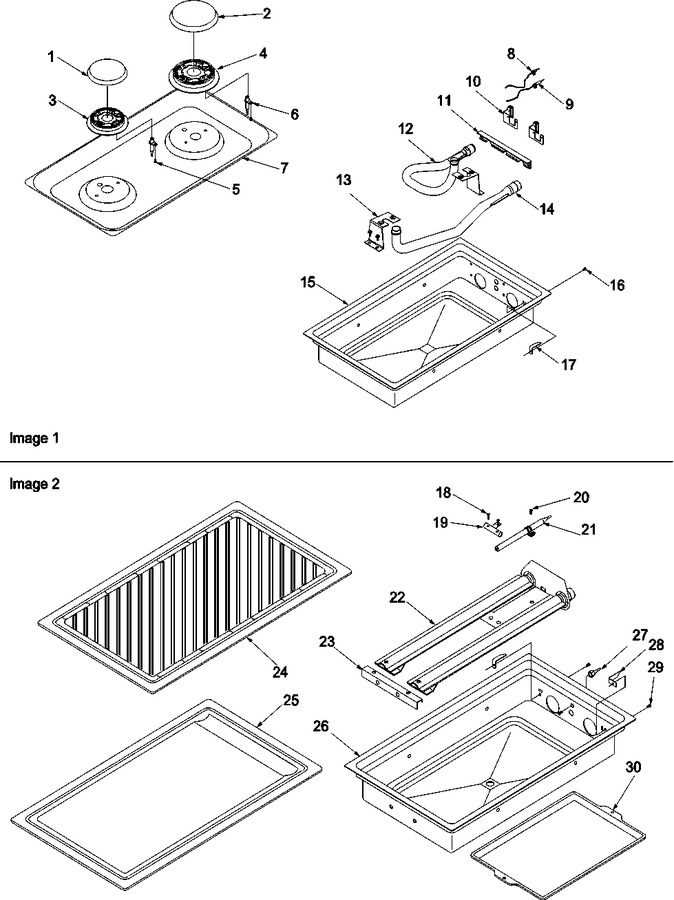

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31782602SY		Cap, Burner 9k (speckle Grey)				$ 32.34
2	31782702SY		Cap, Burner 12/13k (spkle Gry)				$ 36.57
3	WPY0315768		Top Burner (medium 9k)   (Replaces: Y0315768)				$ 128.48
4	Y0315767		Top Burner (large 12/13k)		Appelez-nous	-
5	Y0316775		Screw, Electrode		Appelez-nous	-
6	WPY0316773		Electrode, Spark Ignition   (Replaces: Y0316773)			Immediately	$ 37.13
7	315754W		Top, Module-sealed Burner(wht)		Appelez-nous	-
8	Y0315751		Electrode, Burner Ign. 1o``wire		Appelez-nous	-
9	Y0316389		Electrode, Burner Ign. 21``wire		Appelez-nous	-
10	31749501		Brkt, Venturi		Appelez-nous	-
11	0316697		Brkt, Venturi		Appelez-nous	-
12	31833401		Venturi, Rear Burner-hw		Appelez-nous	-
13	Y0315755		Brkt, Burner Mtg.		Appelez-nous	-
14	31833301		Venturi, Frt Burner		Appelez-nous	-
15	315757B		Module Pan,gas Sealed Brnr(bla		Appelez-nous	-
16	31750303		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
17	Y0315593		Strike, Grille Pan		Appelez-nous	-
18	M0202521		Screw		Appelez-nous	-
19	Y0040841		Flash Tube Kgt591		Appelez-nous	-
20	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: 31750401)			Immediately	$ 6.47
21	Y0042217		Grille, Electrode		Appelez-nous	-
22	0046387		Burner, Grille		Appelez-nous	-
23	Y041041B		Grille Burner Rear Support		Appelez-nous	-
24	316647G		Grille , Low Smoke (black)		Appelez-nous	-
25	31716701G		Griddle, Cast (gas)		Appelez-nous	-
26	315746CG		Module Pan & Deflector		Appelez-nous	-
27	Y0041898		Ground Pin Xst311 Kgt591		Appelez-nous	-
28	Y0315593		Strike, Grille Pan		Appelez-nous	-
29	31750303		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
30	Y0042724		Pan, Grease Kgt591		Appelez-nous	-
NI	31750011		Washer, Flat 13/64 X 5/8 O.d.		Appelez-nous	-
NI	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
