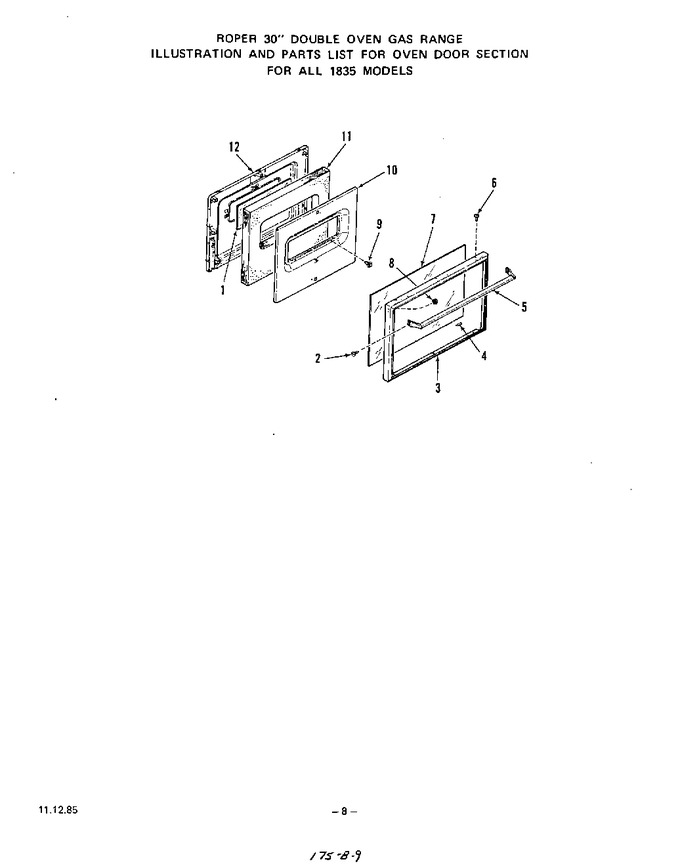

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 326010 | Inner Glass-oven Door |
|
- | |||||
| 2 | 319447 | Screw 8-32 X 1/2`` |
|
- | |||||
| 3 | 326002 | Frame-oven Door |
|
- | |||||
| 4 | 112370 | Cushion (5 Req) |
|
- | |||||
| 5 | 303342 | Handle |
|
- | |||||
| 6 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 7 | 326367 | Outer Glass-oven Door |
|
- | |||||
| 8 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 9 | 104520 | Screw 10-32 X 17/32`` |
|
- | |||||
| 10 | 325996 | Insulation Retainer-oven Door |
|
- | |||||
| 11 | 325999 | Insulation |
|
- | |||||
| 12 | 325946 | Lining-oven Door |
|
- |
