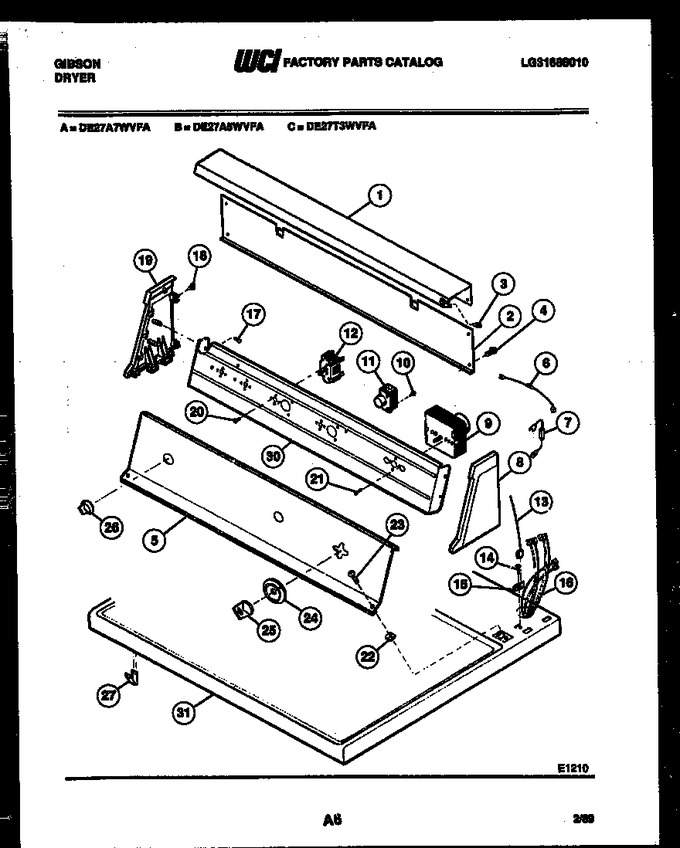

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201681		Cover		Appelez-nous	-
2	3201349		Back Cover		Appelez-nous	-
3	0801825		Clip (3)		Appelez-nous	-
4	3015671		Screw (5)		Appelez-nous	-
5	3201682		Trimplate		Appelez-nous	-
6	3281110		Resistor		Appelez-nous	-
8	3201685		End Cap & Trim Assy Rh		Appelez-nous	-
9	3201383		Timer		Appelez-nous	-
10	08010804		Screw (2)		Appelez-nous	-
11	01132293		Switch-push To Start		Appelez-nous	-
12	3201615		Switch-rotary		Appelez-nous	-
13	3201385		Ground Wire		Appelez-nous	-
14	08001689		Screw		Appelez-nous	-
15	3161198		Terminal		Appelez-nous	-
16	3201307		Harness		Appelez-nous	-
17	F137858-000		Screw (4)		Appelez-nous	-
18	F139577-000		Clip (4)		Appelez-nous	-
19	3201686		End Cap & Trim Assy Lh		Appelez-nous	-
20	3161259		Screw (2)				$ 6.83
21	3161188		Screw (2)		Appelez-nous	-
22	08001912		Clip (2)		Appelez-nous	-
23	F140203-000		Screw (2)		Appelez-nous	-
24	08015702		Pointer		Appelez-nous	-
25	08015701		Timer-knob		Appelez-nous	-
26	08008462		Knob-rotary		Appelez-nous	-
27	3281170		Spring-clip (2)		Appelez-nous	-
30	3201352		Bracket-control Mtg		Appelez-nous	-
31	3201345		Top Panel White		Appelez-nous	-
31	3201347		Top Panel-almond		Appelez-nous	-
16A	3281103		Wire Tie (3) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
