Diagram for 06 - Agitator, Basket And Tub

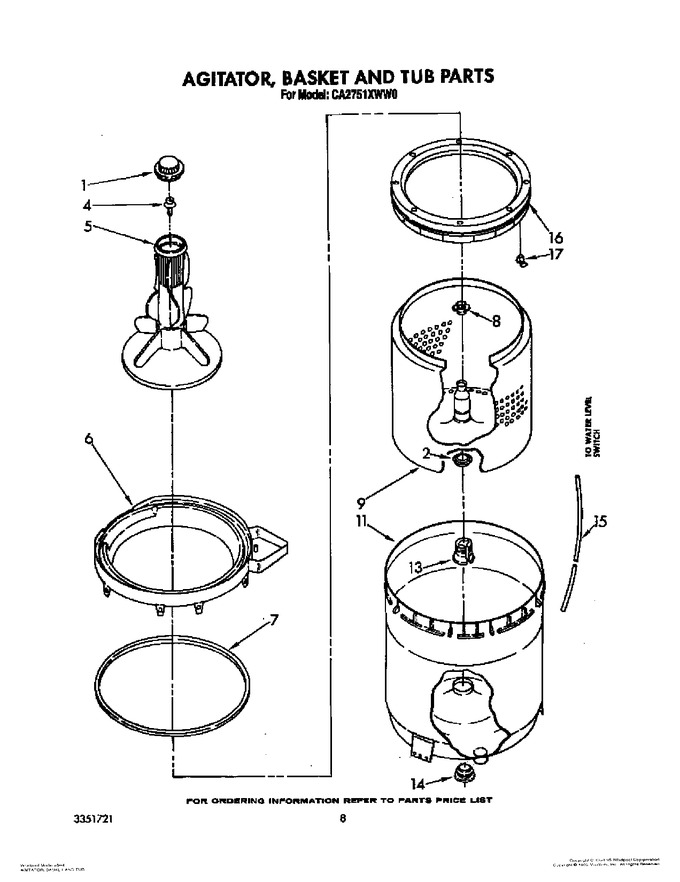

06 - Agitator, Basket And Tub

Diagram for 07 - Miscellaneous
07 - Miscellaneous

Diagram for 08 - Brake, Clutch, Gearcase, Motor And Pump
08 - Brake, Clutch, Gearcase, Motor And Pump

Diagram for 09 - Machine Base
09 - Machine Base

Diagram for 10 - Wiring Harness
10 - Wiring Harness

Diagram for 11 - Brake And Drive Tube
11 - Brake And Drive Tube

Diagram for 12 - Gearcase
12 - Gearcase

Diagram for 13 - Water System
13 - Water System


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3355758 Cap, Agitator   (Replaces: 3388571) In-Stock Immediately $ 8.10

2 3352284 Snap-in-plugs (4) Appelez-nous -
4 WP358237 Screw & Washer (5-16-24 X 1)   (Replaces: 358237) In-Stock Immediately $ 7.97

5 3350151 Agitator Appelez-nous -
6 387966 Tub Ring Appelez-nous -
7 WP3359586 Gasket, Tub Ring   (Replaces: 63222) Special Order $ 81.11

8 WP21366 Nut, Spanner   (Replaces: 21366) In-Stock Immediately $ 8.00

9 3349748 Basket Appelez-nous -
11 63125 Tub Special Order $ 234.68

13 WP389140 Block, Drive   (Replaces: 389140) In-Stock Immediately $ 24.74

14 W10814296 Gasket, Center Post   (Replaces: 383727) In-Stock Immediately $ 8.26

15 WP353244 Hose, Pressure Switch   (Replaces: 386757) In-Stock Immediately $ 53.94

16 387868 Balance Ring (incl. Item 17) Appelez-nous -
17 387868 Balance Ring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
