SELECT A DIAGRAM
01 - Burner Box
02 - Main Top
New Model Search:

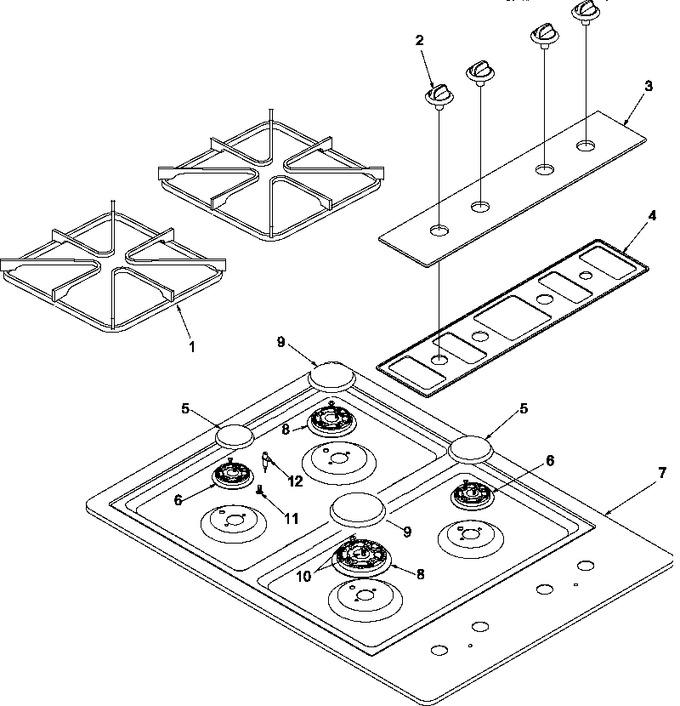

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31725801 | Wire Grate |
|
- | |||||
| 2 | WP31905407B | Knob, Top Burner Valve (blk) (Replaces: 315630B) |
|
$ 20.89 | |||||
| 3 | 31688701B | Glass, Control Panel (blk) |
|
- | |||||
| 4 | 316399B | Frame-control Pnl Glass (blk) |
|
- | |||||
| 5 | 315765MB | Cap, Burner 9k (matte Blk) |
|
- | |||||
| 6 | WPY0315768 | Top Burner (medium 9k) (Replaces: Y0315768) |
|
$ 128.48 | |||||
| 7 | 315524W | Maintop, 30``gas (white) |
|
- | |||||
| 8 | Y0315767 | Top Burner (large 12/13k) |
|
- | |||||
| 9 | 315764MB | Cap, Burner 12/13k (matte Blk) |
|
- | |||||
| 10 | WPY04100059 | Screw, No.6-20 X .750 Pan Hd Ph (Replaces: 31750320) |
|
$ 6.96 | |||||
| 11 | Y0316775 | Screw, Electrode |
|
- | |||||
| 12 | WPY0316773 | Electrode, Spark Ignition (Replaces: Y0316773) |
|
Immediately | $ 37.13 | ||||
| NI | 31750127 | Tinnerman Clip No.c13091-8-z |
|
- | |||||
| NI | Y0062445 | Spacer, Nylon (.14``) |
|
- | |||||
| NI | Y0061164 | Screw No.8 - 18 X .250 |
|
- |
