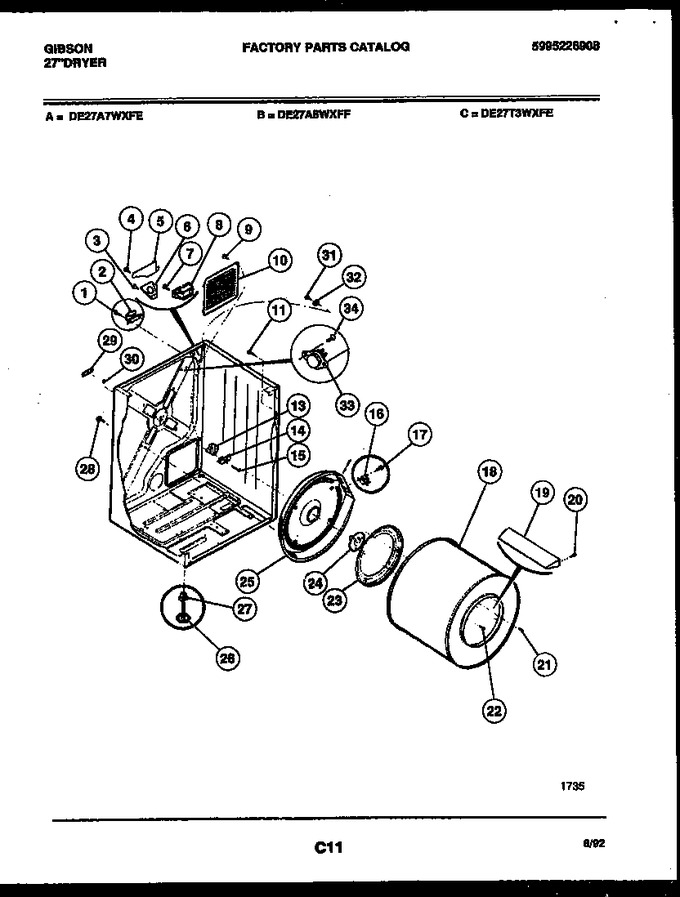

02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Blower And Drive Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011338		Screw (4)		Appelez-nous	-
2	3281175		Hinge				$ 10.16
3	5303015671		Screw		Appelez-nous	-
4	5303015671		Screw		Appelez-nous	-
5	5303211428		Cover-term Block				$ 44.15
6	3281040		Bracket		Appelez-nous	-
7	5308015309		Screw		Appelez-nous	-
8	134101400		Terminal Block   (Replaces: 5303208585)			Immediately	$ 55.99
9	5303281035		Screw		Appelez-nous	-
10	5303211429		Cover - Plate		Appelez-nous	-
11	5303010202		Screw				$ 5.15
13	131825900		Bearing (part Of Rear Bearing Kit.)   (Replaces: 5303281008)			Immediately	$ 10.97
14	131724301		Bracket-bearing (part Of Rear Bearing Kit.)   (Replaces: 5303281023)			Immediately	$ 25.66
15	5303281033		Screw (part Of Rear Bearing Kit.)		Appelez-nous	-
16	5303281113		Thermostat, Safety				$ 93.28
17	5303281035		Screw		Appelez-nous	-
18	3202753		Drum		Appelez-nous	-
19	137552900		Vane (3)   (Replaces: 5303201200)				$ 54.95
20	131382300		Screw (6)   (Replaces: 3202754)			Immediately	$ 13.46
21	5303207393		Screw (3)				$ 6.14
22	5303205255		Screw (part Of Rear Bearing Kit.)				$ 5.04
23	3204254		Baffle				$ 129.00
24	5303281153		Shaft (part Of Rear Bearing Kit.)   (Replaces: 5303281009)			Immediately	$ 46.64
25	3937010		Heater Assembly   (Replaces: 5303269829)			Immediately	$ 193.49
26	5303281032		Foot Bolt (4)		Appelez-nous	-
27	3201202		Grommet (4)				$ 22.47
28	5303010202		Screw (4)				$ 5.15
29	5303281020		Nut-flat (part Of Rear Bearing Kit.)				$ 17.01
30	5303281019		Ball (part Of Rear Bearing Kit.)				$ 16.30
31	3281106		Screw-ground		Appelez-nous	-
32	3281107		Washer Ground		Appelez-nous	-
33	134120900		Thermal Limiter   (Replaces: 5303209192)			Immediately	$ 13.21
34	08010804		Screw		Appelez-nous	-
*53939	5303281153		Rear Bearing Kit			Immediately	$ 46.64

    View Diagram in Separate Window       Print Part List
