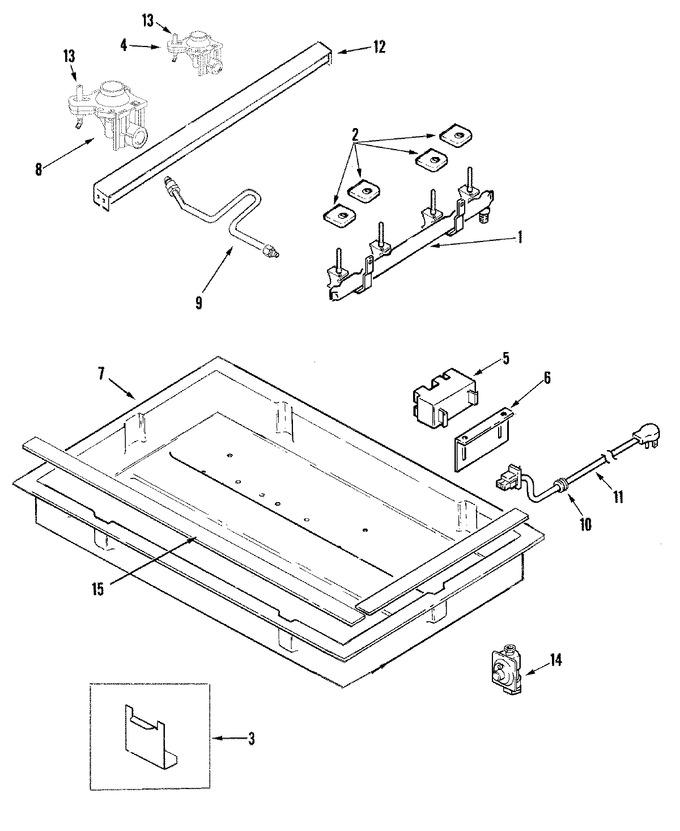

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74007690		Manifold Pipe/valve Assembly	10	Appelez-nous	-
1	WP74001380		Seal, Manifold Pipe   (Replaces: 74001380)	10			$ 58.91
1	74009417		Manifold Pipe/valve Assembly	11			$ 143.40
2	WP74007696		Assy, Switch/lead Wire   (Replaces: 74007696)	10			$ 210.63
3	WP3801F935-51		Bracket, Tie Down   (Replaces: 74007709)	10			$ 37.09
3	WP7101P062-60		Screw No.10 X 2   (Replaces: 7101P062-60)	10			$ 7.24
4	74007786		Holder, Orifice (5k)	10	Appelez-nous	-
5	W10173479		Harness, Spark Lead   (Replaces: 74007697)	10			$ 111.11
5	8215557		Module, Spark   (Replaces: 74007397)	10		Immediately	$ 124.99
6	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
6	74007795		Bracket, Spark Module	10	Appelez-nous	-
7	74007772		Bottom, Burner Box	10	Appelez-nous	-
7	74009422		Bottom, Burner Box	11	Appelez-nous	-
8	WP74007691		Holder, Orifice (9.2k)   (Replaces: 74007691)	10		Immediately	$ 107.26
8	WP74007692		Holder, Orifice (12k)   (Replaces: 74007692)	10			$ 104.54
8	WP7509P103-60		Kit, Lp Conversion   (Replaces: 74007788)	10			$ 129.47
9	74007694		Tube, Burner (rt)	10			$ 55.36
9	74007695		Tube, Burner (lt)	10			$ 37.61
10	8007P003-60		Bushing, Snap	10	Appelez-nous	-
11	74007817		Cord, Power	10	Appelez-nous	-
11	WP4159193		Screw, Ground (grn)   (Replaces: 7101P027-60)	10			$ 4.29
12	74009250		Bracket, Orifice Holder	11	Appelez-nous	-
12	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
12	WP7101P062-60		Screw No.10 X 2   (Replaces: 7101P062-60)	11			$ 7.24
12	74007787		Bracket, Orifice Holder	10	Appelez-nous	-
13	WP8523793		Ignitor, Sourdillion Assy.   (Replaces: 74007473)	10		Immediately	$ 36.15
14	W11170853		Regulator, Pressure   (Replaces: 74007704)	10			$ 283.08
15	12400021		Tape Burner Box Seal 107``	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
