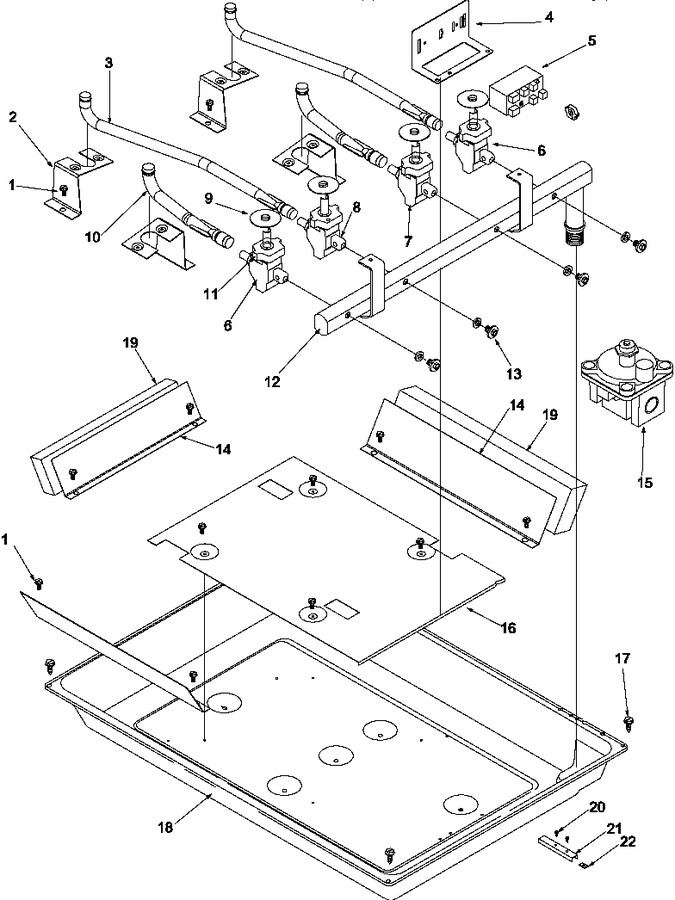

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
2	Y0315640		Brkt, Venturi Mtg		Appelez-nous	-
3	Y0315636		Venturi, Left Side		Appelez-nous	-
4	Y0315097		Brkt, Spark Module		Appelez-nous	-
5	0315154		Spark Module, 4+0		Appelez-nous	-
6	Y0315645		Valve		Appelez-nous	-
7	0315646		Valve, Kit		Appelez-nous	-
8	Y0315647		Valve, Top Burner (5k)		Appelez-nous	-
9	Y0314316		Shield, Switch		Appelez-nous	-
10	0315635		Venturi, Right		Appelez-nous	-
11	Y0316705		Switch, Spark (270 Deg)				$ 56.54
12	Y0317061		Pipe, Manifold		Appelez-nous	-
13	Y0061441		Surface Valve Bolt& Gasket		Appelez-nous	-
14	Y0316984		Shield, Burner Box-side		Appelez-nous	-
15	0042303		Regulator		Appelez-nous	-
16	Y0316983		Shield, Burner Box-bottom		Appelez-nous	-
17	Y0098017		Screw, Wood		Appelez-nous	-
18	Y0315639		Box, Burner (30`` Gas)		Appelez-nous	-
19	0316985		Insulation, Burner Box		Appelez-nous	-
NI	Y0301012		Seal		Appelez-nous	-
NI	Y0316704		Cord, Power Supply		Appelez-nous	-
NI	Y0305004		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
NI	Y0308941		Seal, Inlet		Appelez-nous	-
NI	Y0042109		Strain Relief		Appelez-nous	-
NI	Y0316743		Harness, Spark Module (20``)		Appelez-nous	-
NI	Y0316742		Harness, Spark Module (31``)		Appelez-nous	-
