02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

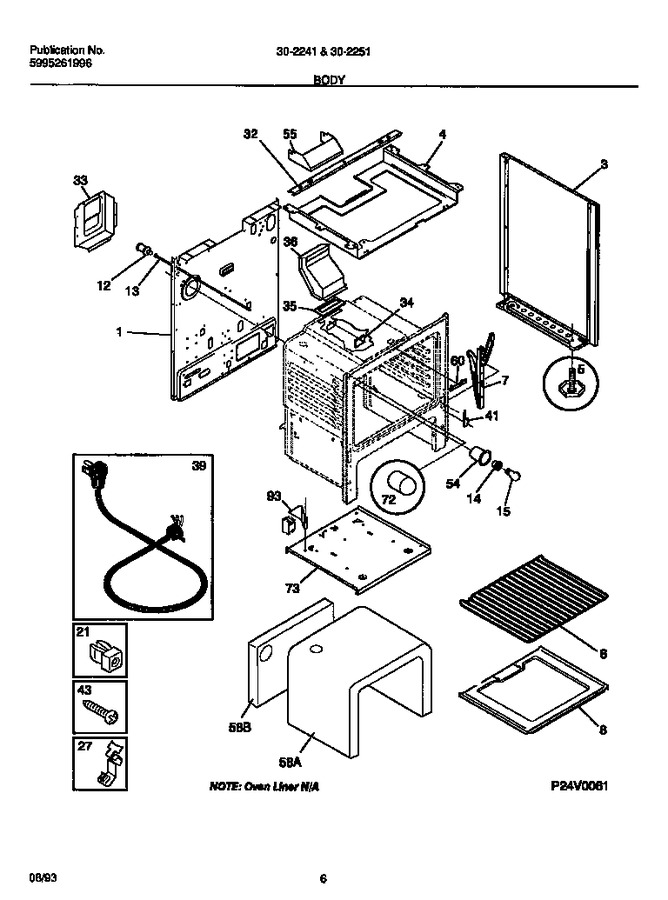

| 1 | 316029410 | Back-main |
|
- | |||||
| 3 | 316081004 | Panel, Bodyside, White, Rh |
|
- | |||||
| 3 | 316081005 | Panel, Bodyside, White, Lh (ni) |
|
- | |||||
| 4 | 316067204 | Burner Box |
|
- | |||||
| 5 | 316116000 | Screw, Anti, Tip, (4) (ni) (Replaces: 316078600) |
|
$ 12.89 | |||||
| 5 | 3934058 | Anti, Tip Kit (ni) |
|
$ 98.75 | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 5 | 5303288460 | Nut, T,type, Leveling Screw (ni) |
|
$ 27.14 | |||||
| 6 | 5304531722 | Rack-oven (Replaces: 316067901) |
|
Immediately | $ 51.05 | ||||
| 7 | 316007001 | Hinge,oven Door ,(2) |
|
$ 234.55 | |||||
| 8 | 316064600 | Support, Oven Bottom (ni) |
|
$ 18.95 | |||||
| 8 | 5303212540 | Panel-oven Bottom |
|
- | |||||
| 12 | 316027702 | Switch-oven Light |
|
- | |||||
| 13 | 316026800 | Rod-light Switch/door |
|
$ 36.86 | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Light Bulb/lamp (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 32 | 3203441 | Channel-burner Supt |
|
- | |||||
| 33 | 316055601 | Shield-spark Module |
|
- | |||||
| 34 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 35 | 08067965 | Gasket-flue |
|
- | |||||
| 36 | 3131904 | Flue |
|
- | |||||
| 39 | 5304534377 | Cord, Electric Power (wiring Harnesses Are Not Availabl (Replaces: 3202006) |
|
$ 26.85 | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 43 | 316282700 | Screw-oven Bottom, 8-18 X 1-7/16 (Replaces: 3131732) |
|
$ 9.93 | |||||
| 54 | 5303271606 | Housing,oven Light |
|
- | |||||
| 55 | 5303291880 | Cover-flue |
|
- | |||||
| 60 | 5303015372 | Cover-oven Front |
|
- | |||||
| 72 | 5303285692 | Cover-light/switch Rod |
|
- | |||||
| 73 | 5303281627 | Base-broiler |
|
- | |||||
| 93 | 316055501 | Shield, Igntr Connector |
|
- | |||||
| 58A | 3017142 | Insulation, Oven Wrapper |
|
$ 193.50 | |||||
| 58B | 3203541 | Insulation, Oven Back |
|
- | |||||
| 93A | 5303280614 | Shield, Flue Profile (ni) |
|
- | |||||
| 93B | 08067961 | Fastener-power Cord |
|
- | |||||
| 93C | 5303321319 | Touch, Up Paint, White (ni) (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
