SELECT A DIAGRAM

02 - Cabinet And Component Parts


03 - Door Parts

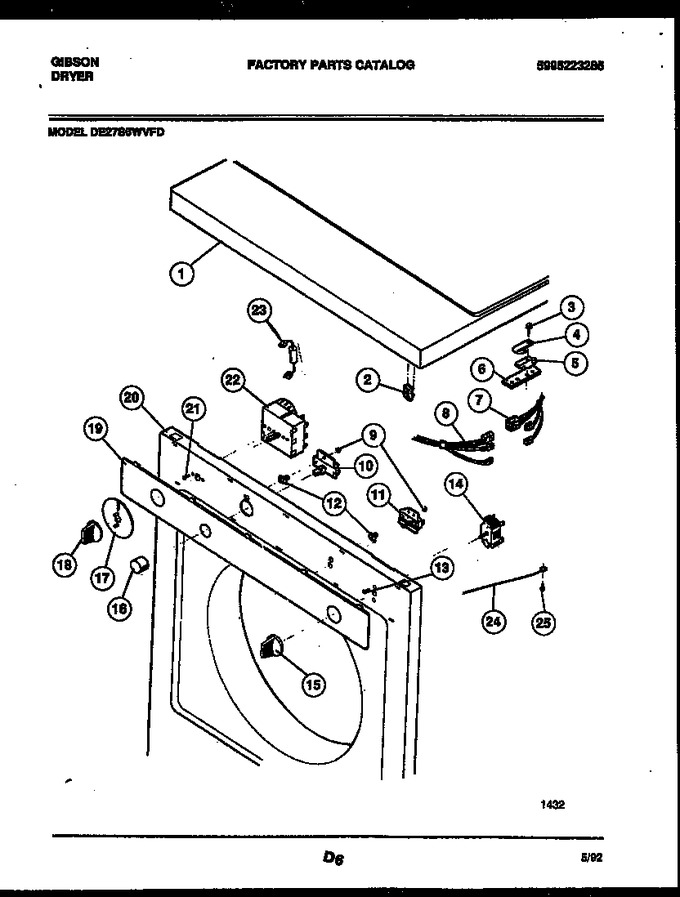

04 - Top, Control And Miscellaneous Part


05 - Blower And Drive Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3203243		Top Panel (white)		Appelez-nous	-
1	3203244		Top Panel (almond)		Appelez-nous	-
2	3281170		Spring Catch		Appelez-nous	-
3	08015345		Screw		Appelez-nous	-
4	3281163		Clip		Appelez-nous	-
5	3281164		Fastener		Appelez-nous	-
6	3281165		Spacer		Appelez-nous	-
7	5303269967		Harness-main		Appelez-nous	-
8	5303270879		Harness-component		Appelez-nous	-
9	3281089		Nut		Appelez-nous	-
10	3203445		Start Switch		Appelez-nous	-
11	5308004087		Buzzer		Appelez-nous	-
12	3281092		Quickey Bolt		Appelez-nous	-
13	3281101		Screw		Appelez-nous	-
14	3281100		Selector Switch		Appelez-nous	-
15	3203249		Knob		Appelez-nous	-
16	3201220		Pushbutton		Appelez-nous	-
17	08027433		Dial		Appelez-nous	-
18	08015435		Knob		Appelez-nous	-
19	3203250		Trimplate		Appelez-nous	-
20	5303283903		Front Panel-white		Appelez-nous	-
20	5303283904		Front Panel-almond		Appelez-nous	-
21	3281096		Screw		Appelez-nous	-
22	3010440		Timer		Appelez-nous	-
23	3281110		Resistor		Appelez-nous	-
24	08015277		Ground Wire		Appelez-nous	-
25	3281035		Screw (4) (stacking Parts)		Appelez-nous	-
25	3281173		Bracket (2) (stacking Parts)		Appelez-nous	-
25	3281172		Washer (2) (stacking Parts)		Appelez-nous	-
25	3281171		Screw (2) (stacking Parts)		Appelez-nous	-
25	3203253		Instructions (stacking Parts)		Appelez-nous	-
22A	3281021		Shield-timer (non-illustrated)		Appelez-nous	-
22B	3281022		Ratchet Fstnr-shield (non-illustrated)		Appelez-nous	-
7A	3281103		Wire Tie (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
