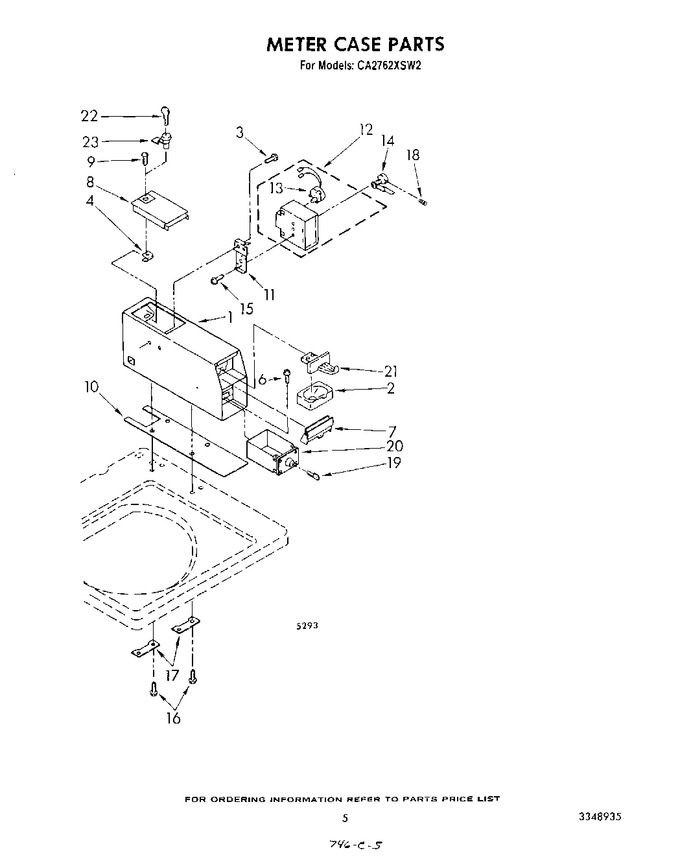

04 - Meter Case


05 - Rear Panel


06 - Agitator, Basket And Tub


07 - Miscellaneous


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Wiring Harness


11 - Brake And Drive Tube


12 - Gearcase


13 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3348026		Meter Case (almond)		Appelez-nous	-
1	3348027		Meter Case (golden Harvest)		Appelez-nous	-
1	3348025		Meter Case (white)		Appelez-nous	-
2	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 66.78
3	339805		Screw, 10-32 X 3/16				$ 12.05
4	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
6	W11715721		Bolt, (4) 5/16 - 24 X 3/4   (Replaces: 3349065)				$ 6.41
8	385760		Door, Service (golden Harvest)		Appelez-nous	-
8	385758		Door, Service (almond)		Appelez-nous	-
8	W11283272		Door, Service (white)   (Replaces: 385757)				$ 95.29
9	358409		Screw & Washer		Appelez-nous	-
10	WP3954812		Cushion, Case   (Replaces: 3348850)				$ 27.99
11	385575		Bracket, Timer				$ 94.31
12	WP3955668		Timer, 60 Hz.   (Replaces: 3348296)				$ 284.98
13	388290		Motor, Timer		Appelez-nous	-
14	385571		Clutch, Timer				$ 42.89
15	WP356418		Screw, Timer   (Replaces: 96435)				$ 7.13
16	3349579		Screw		Appelez-nous	-
17	3347825		Plate, Mounting		Appelez-nous	-
18	98654		Screw, Set		Appelez-nous	-
