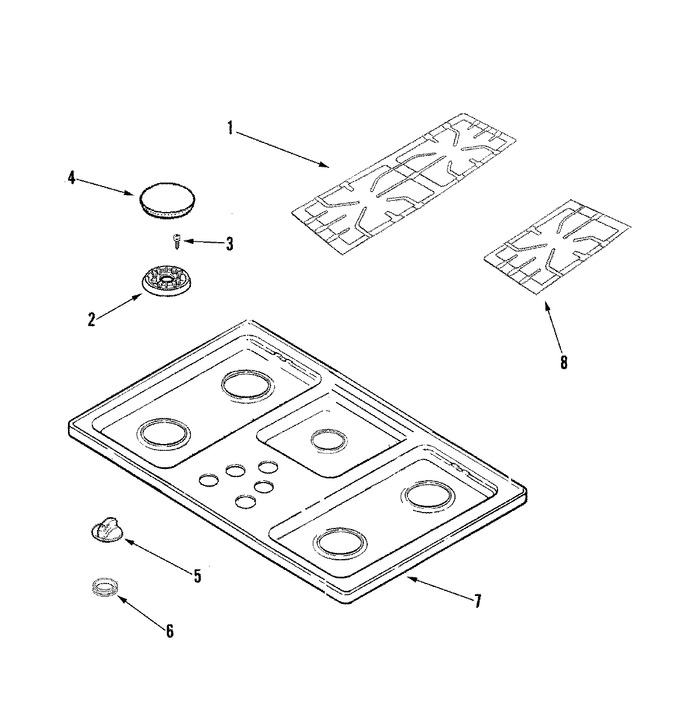

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007866 | Grate, Double (blk) | 10 |
|
- | ||||
| 2 | WPW10406797 | Base, Burner (Replaces: 74007698) | 10 |
|
$ 79.64 | ||||
| 3 | W11772394 | Screw, Burner Base (Replaces: 74007714) | 10 |
|
Immediately | $ 10.94 | |||
| 4 | 74007749 | Cap, Burner (med-blk) | 10 |
|
$ 42.04 | ||||
| 5 | 74007867 | Knob, Burner (blk) | 10 |
|
$ 19.07 | ||||
| 6 | WP74007705 | Grommet (Replaces: 74007705) | 10 |
|
Immediately | $ 6.80 | |||
| 7 | 74008222 | Top Assembly (stl) | 10 |
|
- | ||||
| 8 | 74008237 | Grate, Blk | 10 |
|
- |
