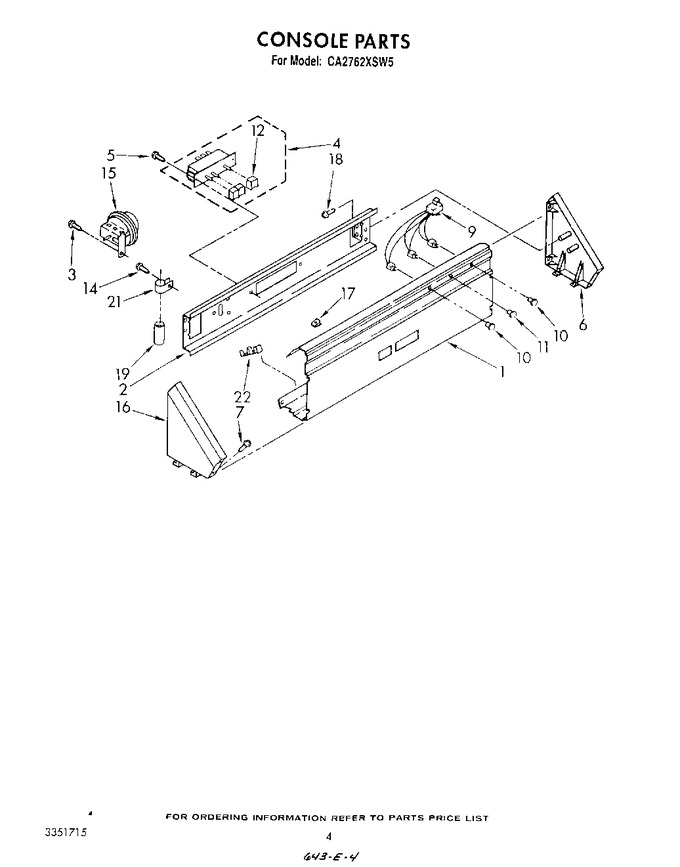

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3347633		Panel, Console		Appelez-nous	-
2	3347632		Bracket, Control		Appelez-nous	-
3	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
4	3348294		Switch, Cycle Selector (includes Illus. No. 12)		Appelez-nous	-
5	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 9.65
6	3347705		End Cap (r.h.)		Appelez-nous	-
7	WP388326		Screw (2)   (Replaces: 64211)				$ 7.30
9	W10858647		Lights, Indicator   (Replaces: 3348674)				$ 35.18
10	WP3348109		Lens, Amber (2)   (Replaces: 3348109)			Immediately	$ 11.26
11	WP3348110		Lens, Yellow (1)   (Replaces: 3348110)				$ 6.96
12	3348587		Pushbutton (3)				$ 12.40
14	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
15	3348542		Switch, Water Level		Appelez-nous	-
16	63789		Cap, End (l.h.)		Appelez-nous	-
17	689559		Nut, Push-in (2)		Appelez-nous	-
18	355326		Screw, End Cap To Bracket (4)		Appelez-nous	-
19	WP8572717		Capacitor, Motor Start (mfd 189) (120 Volts)   (Replaces: 357021)			Immediately	$ 72.13
21	357030		Clamp, Capacitor				$ 18.98
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
