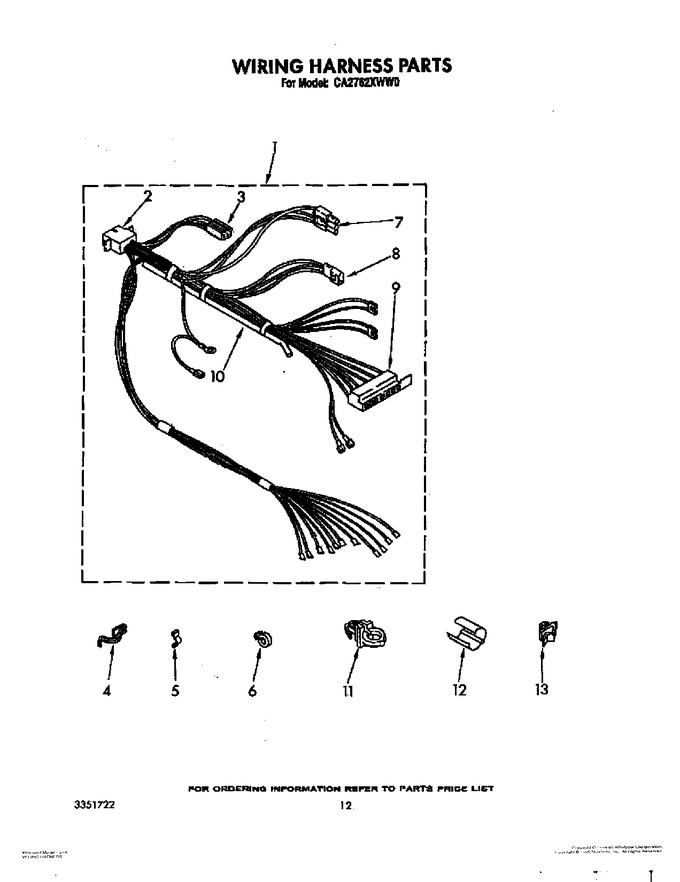

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3354394		Harness, Base & Pressure Switch Hose		Appelez-nous	-
2	96894		Plug, Terminal (15 Way) Uses Terminal 94614)		Appelez-nous	-
3	352457		Plug, Terminal (6 Way) Uses Terminal 94614)		Appelez-nous	-
4	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
5	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
6	8559320		Clip, Harness   (Replaces: 3352501)				$ 41.27
7	WP62889		Receptacle, Terminal (3-way) (lid Switch)   (Replaces: 62889)				$ 6.88
8	3353876		Plug, Terminal (3-way) (power Cord)		Appelez-nous	-
9	WP62505		Block, Disconnect (motor)   (Replaces: 62505)				$ 21.35
10	WP353244		Hose, Pressure Switch   (Replaces: 386757)			Immediately	$ 53.94
11	62749		Clip, Harness				$ 18.77
12	63523		Protector, Harness				$ 169.95
13	62732		Clip, Harness		Appelez-nous	-
