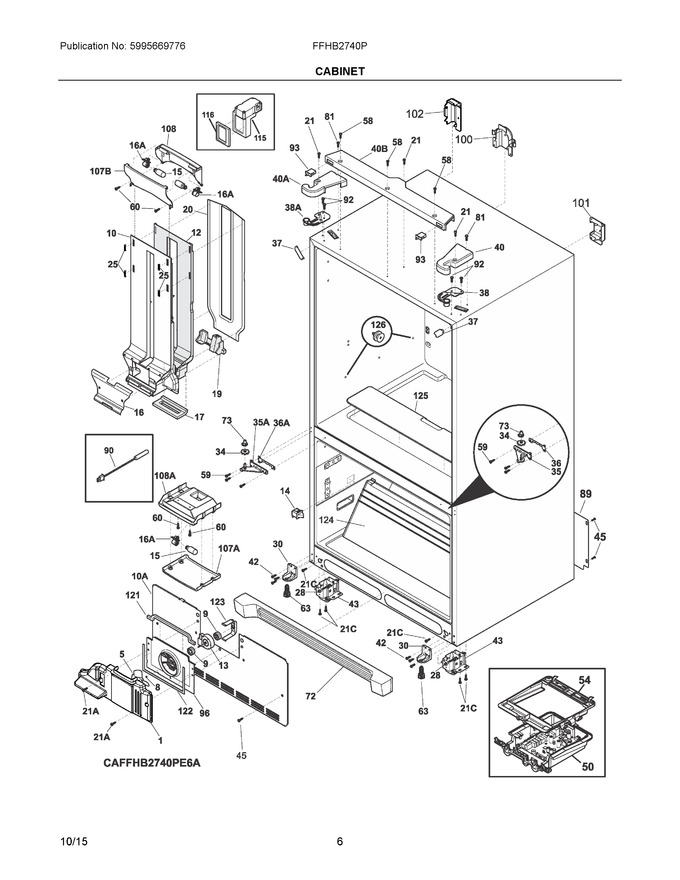

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304503130		Cover, Evaporator Fan				$ 72.05
5	5308000010		Fan Blade, Red, Evaporator Fan			Immediately	$ 49.03
8	215474201		Washer, "slinger", Nylon, Evap Fan Shaft			Immediately	$ 18.43
9	241518301		Bushing, Motor Mounting				$ 66.63
10	242072002		Cover-air Duct			Immediately	$ 139.91
12	242072401		Insulation-air Duct				$ 44.66
13	809069220		Motor, Evaporator Fan   (Replaces: 241509402)			Immediately	$ 154.14
14	242060202		Switch-light/lamp, Frzr Door				$ 40.40
15	5304517886		Light Bulb   (Replaces: 241552807)			Immediately	$ 73.06
16	242072101		Cover-damper				$ 50.63
17	241928201		Gasket-air Duct				$ 17.72
19	242072601		Support-eps Damper				$ 47.78
20	242072201		Cover-air Duct, Rear				$ 96.95
21	241732101		Screw, 10-32 X 1/2			Immediately	$ 15.60
25	241949502		Clip, Air Vent				$ 20.48
28	5304499445		Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special   (Replaces: 240335502)			Immediately	$ 31.33
30	241778701		Bracket-anti Tip				$ 26.54
34	241868301		Washer, Hinge, Nylon, (2)				$ 31.19
35	241763005		Hinge-lower, Zinc, Rh		Appelez-nous	-
36	241868201		Spacer, Door, Lower Rh				$ 49.62
37	242161206		Trim-cabinet Corner, Gray, (2)				$ 10.62
38	241761301		Bracket-upper Hinge, Rh				$ 66.25
40	241778007		Cover-upper Hinge, Graye, Rh		Appelez-nous	-
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy, Adjustable, Front, (2)   (Replaces: 240335005)			Immediately	$ 31.33
45	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
50	5304502780		Board-main Power		Appelez-nous	-
54	807854301		Support, Housing, Main Board				$ 45.36
58	241500305		Screw   (Replaces: 241853202)				$ 3.03
59	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 8.34
60	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	242054804		Grille/kickplate				$ 83.64
73	242075701		Cam-lower Hinge				$ 22.75
81	134154100		Screw, Hex Head, #10-32 X 3/8   (Replaces: 242025601)				$ 13.46
89	5304520905		Cover-access, W/label   (Replaces: 241733902)			Immediately	$ 74.03
90	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
93	241835505		Switch-light, Grey			Immediately	$ 70.16
96	241860601		Shroud-evap Fan Mtg			Immediately	$ 131.83
100	242157601		Cover, Tubing, Eps Block				$ 11.92
101	242157801		Cover, Tubing, Eps Block				$ 23.13
102	242157501		Cover, Tubing, Eps Block				$ 23.82
108	241971403		Cover-wiring, Top Air Duct, W/slots				$ 31.55
115	5303918899		Damper, Motorized   (Replaces: 241518501)			Immediately	$ 73.24
116	241518601		Seal-damper, Foam				$ 9.22
121	241860103		Gasket-evap, Upper			Immediately	$ 3.73
122	241860117		Gasket-evap, Bottom   (Replaces: 241860102)			Immediately	$ 11.21
123	242135301		Clip, Evap Fan Motor				$ 7.79
124	242006903		Duct-air, Freezer   (Replaces: 242006902)			Immediately	$ 63.70
125	242071201		Cover, Sump				$ 114.82
126	242081301		Screw-shoulder		Appelez-nous	-
107A	241971601		Shield-light, Frzr				$ 35.65
107B	241971202		Shield-light, Upper				$ 36.41
108A	241971801		Cover-wiring, Freezer Light				$ 87.32
10A	241860402		Cover-evap Coil, Lower			Immediately	$ 130.91
16AC	240590403		Socket-light				$ 26.54
21A	242015001		Screw, 8-18 X 1/2			Immediately	$ 16.30
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
35A	241763006		Hinge-lower, Zinc, Lh		Appelez-nous	-
36A	241868202		Spacer, Door, Lower Lh				$ 23.51
38A	241761302		Bracket-upper Hinge, Lh				$ 64.49
40A	5304494165		Cover-upper Hinge, Gray, Lh   (Replaces: 241778008)				$ 73.57
40B	241862405		Cover-upper Hinge, Grey, Center				$ 101.65
NI	5304521649		Harness-wiring   (Replaces: 242015904)			Immediately	$ 101.63
NI	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
NI	241695904		Screw				$ 14.41
NI	5304453707		Screw, Quad Hilo, #8-18, (2)   (Replaces: 241953901)			Immediately	$ 15.92
NI	242118001		Shield, Wiring Cover, Freezer		Appelez-nous	-
NI	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
NIA	241510802		Harness-wiring, Frz Light				$ 41.81
NIA	242004802		Foam Strip				$ 5.67
NIA	241679901		Screw, Shield Mtg.				$ 14.18
NIA	241860111		Gasket-evap, Bottom				$ 12.05
NIA	240383407		Screw, Truss Hd Quad, #10-16 X .500, White				$ 12.76
NIA	241842301		Cap-thermistor			Immediately	$ 34.02
NIAA	241969202		Harness-wiring, Top Light				$ 92.84
NIAA	241860104		Gasket-coil Cover			Immediately	$ 29.77
NIAB	807999001		Harness, Wiring, Freezer, Led Main		Appelez-nous	-
NIAB	241860105		Gasket-coil Cover			Immediately	$ 17.87
NIB	242118101		Sheild, Wiring Cover		Appelez-nous	-
NIB	241860112		Gasket-evap, Upper				$ 7.09
NIB	241953904		Screw, #8-18				$ 10.63
NIB	218515401		Clip-grille				$ 17.72
NIB	242061606		Harness-wiring, Air Duct		Appelez-nous	-
NIB	241953902		Screw, #8 - 18 X .380			Immediately	$ 17.11
NIC	241969001		Cap, Screw				$ 16.69
NIC	242072501		Cover-eps, Damper				$ 19.72
