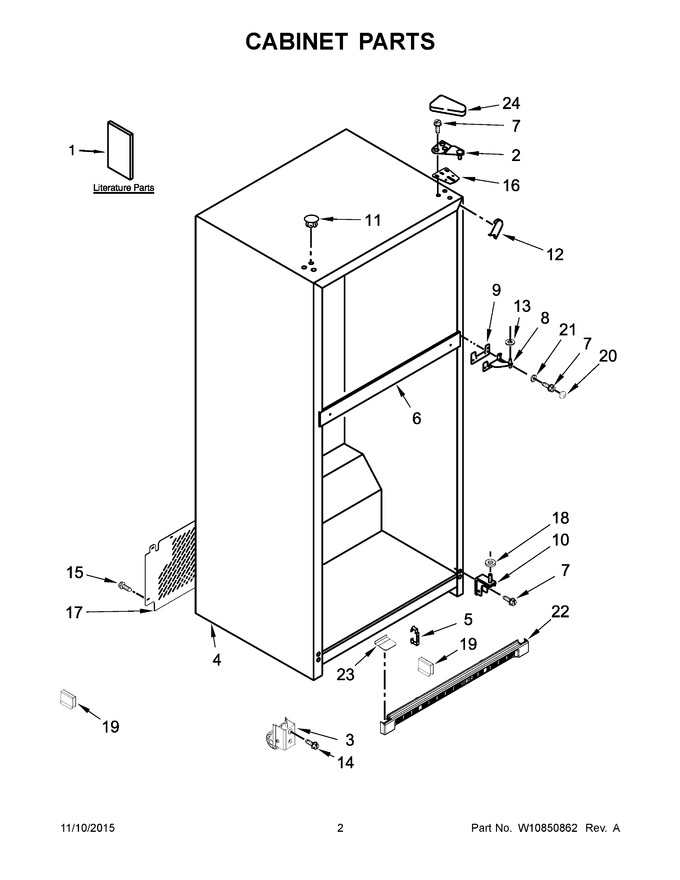

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10803925		Service & Wiring Sheet		Appelez-nous	-
2	WP2261963		Assembly, Top Hinge   (Replaces: 2261963)			Immediately	$ 89.51
3	W10849386		Assembly, Roller   (Replaces: W10725960)				$ 98.36
4	N/P		Cabinet (not Serviced)		Appelez-nous	-
5	2254385		Clip, Grille				$ 76.18
6	N/P		Rail, Center (not Serviced)		Appelez-nous	-
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
8	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 78.88
9	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 9.59
10	WP2254473		Hinge, Bottom   (Replaces: 2254473)			Immediately	$ 7.62
11	WPW10520304		Hole Plug (white)   (Replaces: W10520304)			Immediately	$ 16.47
12	WPW10283959		Filler, Wrapper (white)   (Replaces: W10283959)				$ 7.04
13	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 9.79
14	3400524		Bolt   (Replaces: W10142287)				$ 11.39
15	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.01
16	W11169703		Shim, Top Hinge (white)   (Replaces: 2221885)				$ 13.54
17	W11307290		Cover, Unit   (Replaces: W10609390)		Appelez-nous	-
18	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 8.89
19	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 9.88
20	W10846529		Dome Cap (white)   (Replaces: W10674771)			Immediately	$ 16.99
21	W10847959		Dome Cap, Washer   (Replaces: W10674773)				$ 9.66
22	W10839426		Grille (white)   (Replaces: W10592141)				$ 71.20
23	W10600071		Cover, Toe Grille (white)				$ 87.44
24	WP2213360		Cover, Top Hinge (white)   (Replaces: 2213360)				$ 17.31
1A	W10817990		Use & Care Guide		Appelez-nous	-
