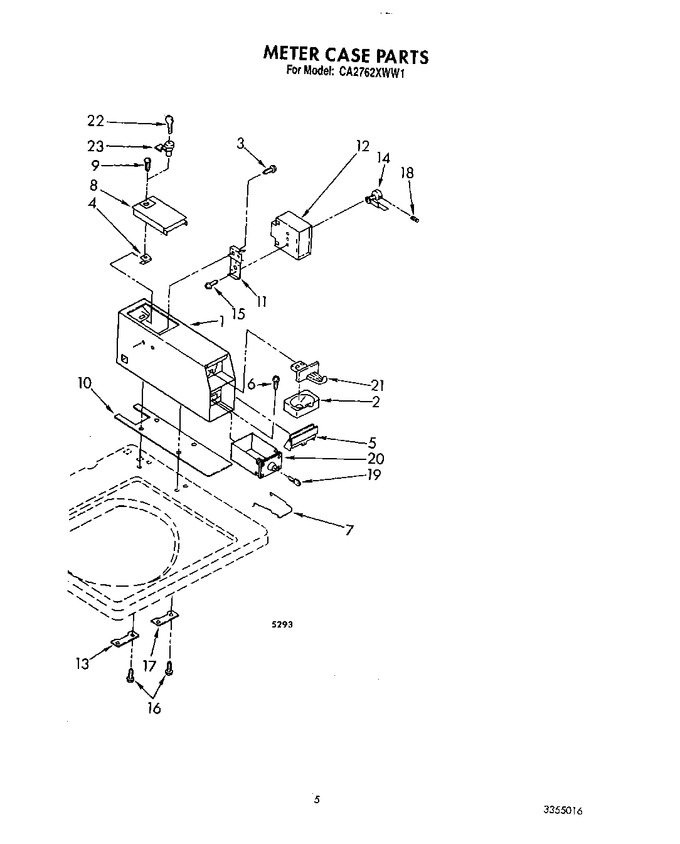

04 - Meter Case


05 - Rear Panel


06 - Agitator, Basket And Tub


07 - Miscellaneous


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Wiring Harness


11 - Brake And Drive Tube


12 - Gearcase


13 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10549814		Meter Case (white)   (Replaces: 3351132)				$ 332.94
1	3351133		Meter Case (almond)		Appelez-nous	-
1	3351134		Meter Case (golden Harvest)		Appelez-nous	-
2	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 66.78
3	339805		Screw, 10-32 X 3/16				$ 12.05
4	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
5	3351152		Spacer, Money Vault (golden Harvest)		Appelez-nous	-
5	3351150		Spacer (money Vault) (white)		Appelez-nous	-
5	3351151		Spacer, Money Vault (for Almond Model)		Appelez-nous	-
6	3353994		Bolt, (1) 5/16 - 18 X 2 1/2		Appelez-nous	-
7	3352295		Guide, Drawer		Appelez-nous	-
8	W11283272		Door, Service (white)   (Replaces: 3351136)				$ 95.29
8	3351137		Door, Service (for Almond Model)		Appelez-nous	-
8	3351138		Door, Service (golden Harvest)		Appelez-nous	-
9	358409		Screw & Washer		Appelez-nous	-
10	WP3954812		Cushion, Case   (Replaces: 3348850)				$ 27.99
11	385575		Bracket, Timer				$ 94.31
12	3359763		Timer (with 2nd Rinse Cycle)		Appelez-nous	-
12	WP3355023		Timer, 60 Hz.   (Replaces: 3355023)			Immediately	$ 359.89
13	3353813		Plate, Mounting				$ 47.08
14	385571		Clutch, Timer				$ 42.89
14	WP354987		E-ring   (Replaces: 354987)			Immediately	$ 10.58
15	WP356418		Screw, Timer   (Replaces: 96435)				$ 7.13
16	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
17	3347825		Plate, Mounting		Appelez-nous	-
18	98654		Screw, Set		Appelez-nous	-
