SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram

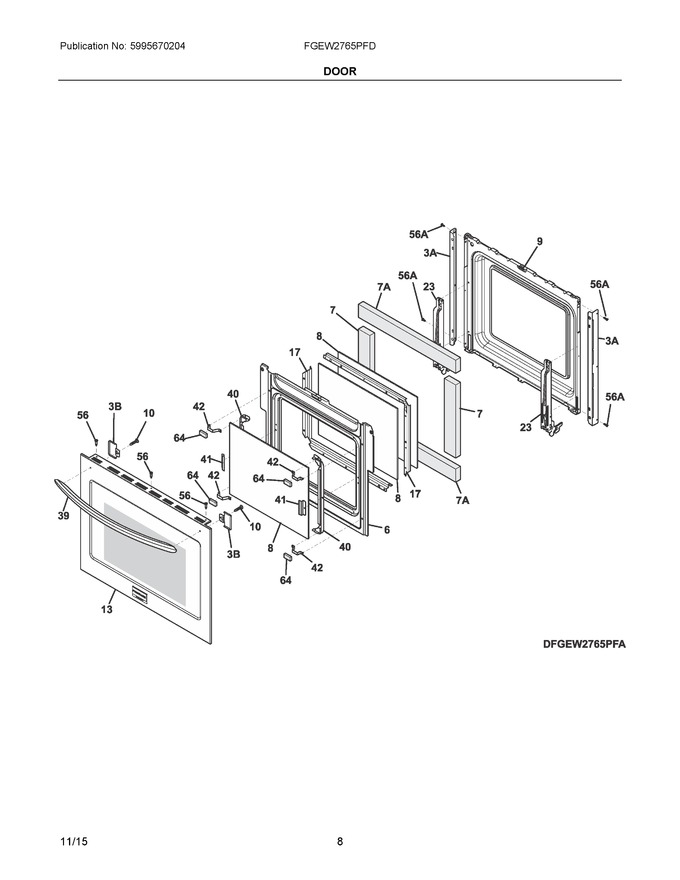

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085803		Glass, Oven Door, Heat Barrier, Hb1   (Replaces: 318212252)			Immediately	$ 108.45
9	139002913		Liner, Oven Door				$ 148.84
10	5304414648		Screw, Handle Mtg.				$ 14.18
13	808992603		Door Assembly, Outer, Stainless/black, W/trim & Badge				$ 527.64
17	318264702		Spacer, Glass, (2)		Appelez-nous	-
23	316575917		Hinge, Oven Door, Red				$ 67.33
39	318919602		Handle, Door, Stainless				$ 265.08
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)   (Replaces: 318382301)				$ 50.81
56	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
3B	318262104		Cover, Rear Door, Black, (2)				$ 24.99
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)   (Replaces: 318372015)				$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
