01 - Cover Sheet
02 - Cabinet Parts

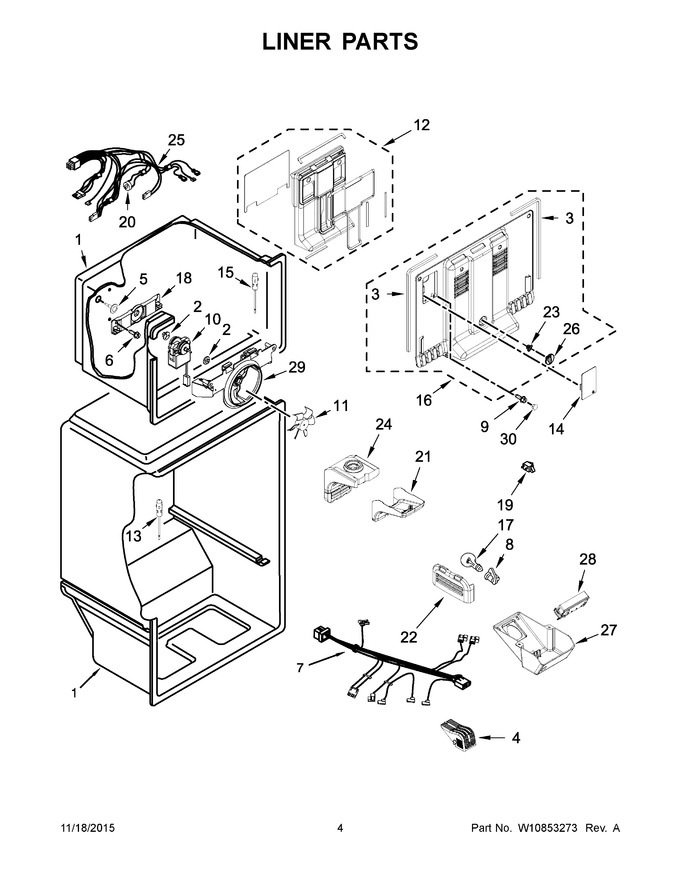

03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10709194) |
|
Immediately | $ 82.02 | ||||
| 4 | W10920316 | Cover, Light (Replaces: W10628684) |
|
$ 84.08 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 6.89 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 7 | W10797918 | Wire Assembly, Control Box |
|
- | |||||
| 8 | W11447232 | Socket, Light (Replaces: W10134764) |
|
Immediately | $ 11.89 | ||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 10 | WPW10173141 | Fan Motor (Replaces: W10173141) |
|
$ 273.22 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | W10919804 | Assembly, Evaporator Plenum (Replaces: W10676682) |
|
Immediately | $ 86.63 | ||||
| 13 | W11438736 | Thermistor, Refrigerator (Replaces: W10556397) |
|
Immediately | $ 75.64 | ||||
| 14 | W10677275 | Cover, Hole |
|
$ 79.23 | |||||
| 15 | WPW10383615 | Thermistor, Freezer Evaporator (Replaces: W10383615) |
|
Immediately | $ 42.76 | ||||
| 16 | W11024683 | Cover, Evaporator (Replaces: W10668482) |
|
$ 210.51 | |||||
| 17 | W10716219 | Bulb, Light |
|
- | |||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 64.67 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | WPW10392132 | Bi-metal, Defrost (Replaces: W10392132) |
|
Immediately | $ 7.76 | ||||
| 21 | W10637058 | Cover, Air Diffuser |
|
$ 76.24 | |||||
| 22 | W10638176 | Cup, Air Diffuser |
|
$ 93.94 | |||||
| 23 | W11244470 | Baffle, Air Manual (Replaces: W10570951) |
|
$ 73.32 | |||||
| 24 | W10861170 | Assembly, Air Diffuser (Replaces: W10633587) |
|
Immediately | $ 66.91 | ||||
| 25 | W10797921 | Assembly, Evaporator Fan Wire (includes Bi-metal Defrost) |
|
- | |||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 78.73 | |||||
| 27 | W10628683 | Box, Control |
|
$ 37.04 | |||||
| 28 | WPW10674683 | Control, Electronic (Replaces: W10674683) |
|
$ 274.95 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 27.83 | ||||
| 30 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 8.47 |
