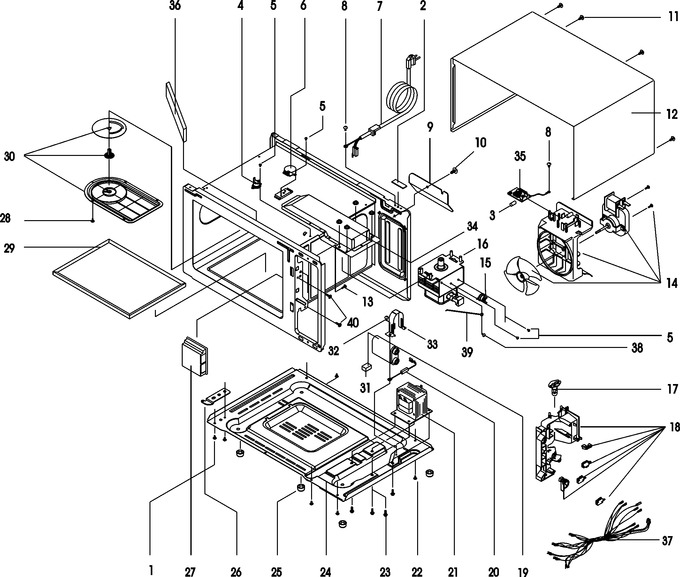

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	56001217		Screw		Appelez-nous	-
002	56001451		Foam		Appelez-nous	-
003	WP8183507		Fuse, 20 A.   (Replaces: 56001353)				$ 18.33
004	56001426		Thermal Cut-out, Cavity				$ 19.25
005	W10491985		Screw   (Replaces: 56001230)			Immediately	$ 6.47
006	56001337		Motor, Stirrer				$ 149.37
007	56001454		Powercord		Appelez-nous	-
008	56001217		Screw		Appelez-nous	-
009	56001428		Air Deflector- Rear		Appelez-nous	-
010	56001210		Screw		Appelez-nous	-
011	WP56001173		Screw   (Replaces: 56001151)				$ 1.53
012	56001429		Wrapper		Appelez-nous	-
013	56001210		Screw		Appelez-nous	-
014	56001411		Blower Motor Assy		Appelez-nous	-
015	56001432		Thermal Cut-out, Mag		Appelez-nous	-
016	56001433		Magnetron		Appelez-nous	-
017	56001034		Bulb/ Socket Assy				$ 11.70
018	56001413		Interlock Switch Assembly		Appelez-nous	-
019	56001435		Capacitor- 1.05 Mf		Appelez-nous	-
020	56001436		Diode Hv				$ 19.86
021	56001437		Transformer Hv		Appelez-nous	-
022	WP56001173		Screw   (Replaces: 56001151)				$ 1.53
023	56001222		Screw		Appelez-nous	-
024	56001438		Base		Appelez-nous	-
025	56001456		Foot, Base		Appelez-nous	-
026	56001439		Hinge, Lower		Appelez-nous	-
027	56001440		Air Guide		Appelez-nous	-
028	56001450		Rivet Assy		Appelez-nous	-
029	56001441		Tray Assy		Appelez-nous	-
030	12002625		Cover/stirrer Blade-kit/rivets				$ 62.93
031	56001449		Foam		Appelez-nous	-
032	56001217		Screw		Appelez-nous	-
033	56001218		Holder, Capacitor		Appelez-nous	-
034	56001051		Nut, Hinge		Appelez-nous	-
035	56001444		Fuse Block / Filter Assy		Appelez-nous	-
036	56001445		Foam Upper		Appelez-nous	-
037	56001453		Harness Main		Appelez-nous	-
038	WP56001173		Screw   (Replaces: 56001151)				$ 1.53
039	56001447		Supporter Wire		Appelez-nous	-
040	56001448		Screw		Appelez-nous	-
