Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56001217		Screw		Appelez-nous	-
2	56001451		Foam		Appelez-nous	-
3	WP8183507		Fuse, 20 A.   (Replaces: 56001353)				$ 18.33
4	56001426		Thermal Cut-out, Cavity				$ 19.25
5	W10491985		Screw   (Replaces: 56001230)			Immediately	$ 6.47
6	56001337		Motor, Stirrer				$ 149.37
7	56001454		Powercord		Appelez-nous	-
8	56001217		Screw		Appelez-nous	-
9	56001428		Air Deflector- Rear		Appelez-nous	-
10	56001210		Screw		Appelez-nous	-
11	WP56001173		Screw   (Replaces: 56001151)				$ 1.53
12	56001429		Wrapper		Appelez-nous	-
13	56001210		Screw		Appelez-nous	-
14	56001411		Blower Motor Assy		Appelez-nous	-
15	56001432		Thermal Cut-out, Mag		Appelez-nous	-
16	56001433		Magnetron		Appelez-nous	-
17	56001034		Bulb/ Socket Assy				$ 11.70
18	56001413		Interlock Switch Assembly		Appelez-nous	-
19	56001435		Capacitor- 1.05 Mf		Appelez-nous	-
20	56001436		Diode Hv				$ 19.86
21	56001437		Transformer Hv		Appelez-nous	-
22	WP56001173		Screw   (Replaces: 56001151)				$ 1.53
23	56001222		Screw		Appelez-nous	-
24	56001438		Base		Appelez-nous	-
25	56001456		Foot, Base		Appelez-nous	-
26	56001439		Hinge, Lower		Appelez-nous	-
27	56001440		Air Guide		Appelez-nous	-
28	56001450		Rivet Assy		Appelez-nous	-
29	56001441		Tray Assy		Appelez-nous	-
30	12002625		Cover/stirrer Blade-kit/rivets				$ 62.93
31	56001449		Foam		Appelez-nous	-
32	56001217		Screw		Appelez-nous	-
33	56001218		Holder, Capacitor		Appelez-nous	-
34	56001051		Nut, Hinge		Appelez-nous	-
35	56001444		Fuse Block / Filter Assy		Appelez-nous	-
36	56001445		Foam Upper		Appelez-nous	-
37	56001453		Harness Main		Appelez-nous	-
38	WP56001173		Screw   (Replaces: 56001151)				$ 1.53
39	56001447		Supporter Wire		Appelez-nous	-
40	56001448		Screw		Appelez-nous	-

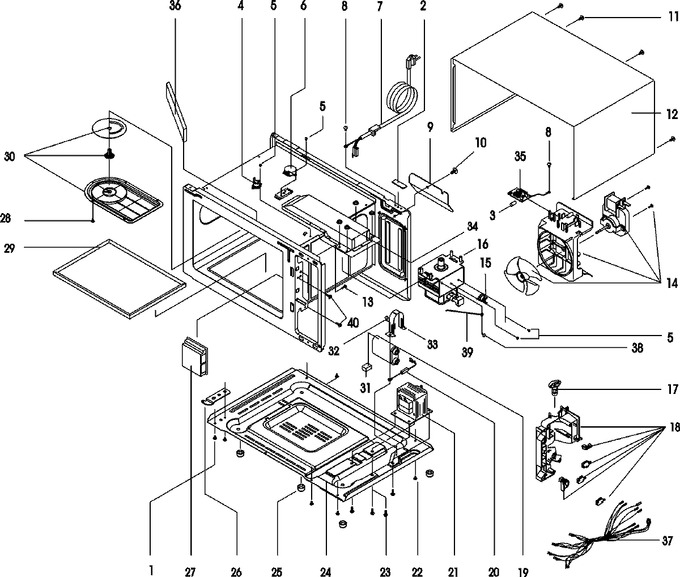

    View Diagram in Separate Window       Print Part List
