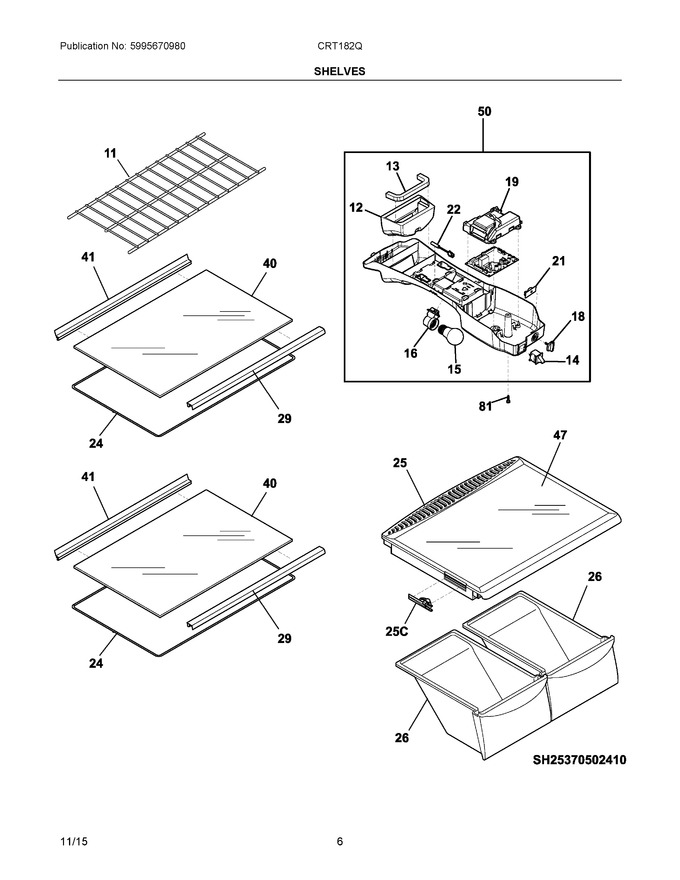

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 91.80
12	5303918717		Diffuser, Air, Control Box   (Replaces: 5304498350)			Immediately	$ 34.89
13	242240602		Gasket, Air Diffuser			Immediately	$ 11.17
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	241559801		Socket, Light   (Replaces: 242081801)				$ 72.68
18	242217001		Knob, Cold Control				$ 226.00
19	5304498427		Housing, Board		Appelez-nous	-
21	5304501856		Board, User Interface, Potentiometer   (Replaces: 242231601)			Immediately	$ 766.96
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
24	240372409		Frame, Sliding Shelf, Full Width				$ 127.08
25	240364793		Cover-crisper Pan   (Replaces: 240364786)			Immediately	$ 108.94
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 148.35
29	240357704		Trim-shelf, Front			Immediately	$ 66.25
40	240350620		Glass-shelf, 23.78" X 16.34			Immediately	$ 140.90
41	240561502		Trim-shelf, Rear			Immediately	$ 71.59
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
50	5304507171		Control Box, Assembly, Complete, W/board & Harns   (Replaces: 5304498355)			Immediately	$ 327.02
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
25C	241613502		Control-humidity, Lh				$ 47.78
NIA	241705801		Spacer-shelf				$ 7.09
NIA	5304498462		Shield, Heat				$ 20.48
