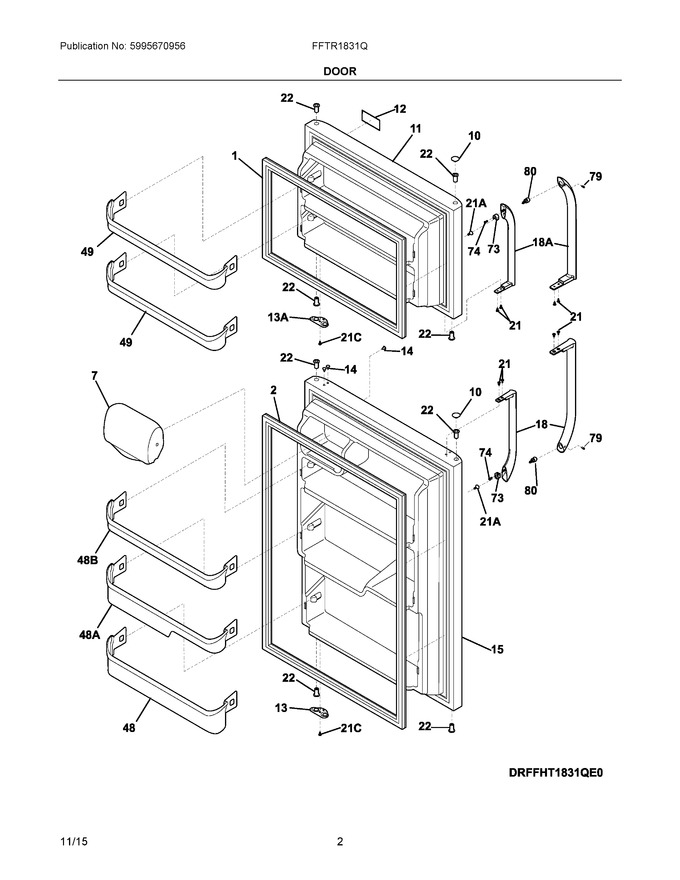

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193209		Gasket-frzr Door, Black, Magnetic			Immediately	$ 197.62
2	242193212		Gasket-refr Door, Black, Magnetic			Immediately	$ 191.86
7	240337712		Door-dairy			Immediately	$ 36.41
10	240381303		Plug-button, Black, Hinge Brg Hole				$ 69.77
11	240437419		Door-frzr, Black, Complete Assy				$ 471.29
12	242016301		Nameplate, Frigidaire				$ 4.26
13	240312422		Door Stop, Black, Refr   (Replaces: 240312405)				$ 15.17
14	240494003		Plug-button, Black				$ 18.20
15	241798555		Door-refr, Black, Complete Assy   (Replaces: 240438634)				$ 557.18
18	5304506471		Handle-door, Black, Refr-rh/frzr-lh   (Replaces: 242059506)			Immediately	$ 95.56
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door			Immediately	$ 52.37
49	240495805		Bin-door, Pseudo, Frzr				$ 50.94
73	218396701		Block-handle Mtg, Dovetail		Appelez-nous	-
74	215503203		Screw, Cr Pan Hd, 10-16 X 0.500			Immediately	$ 7.09
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	5304506471		Handle-door, Black, Refr-lh/frzr-rh   (Replaces: 242059503)			Immediately	$ 95.56
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 30.20
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
48A	240337901		Bin-door			Immediately	$ 52.13
48B	240338001		Bin-door			Immediately	$ 34.96
