SELECT A DIAGRAM

01 - Cabinet And Base


02 - Control Panel


03 - Door And Front, Access, And Top Panel

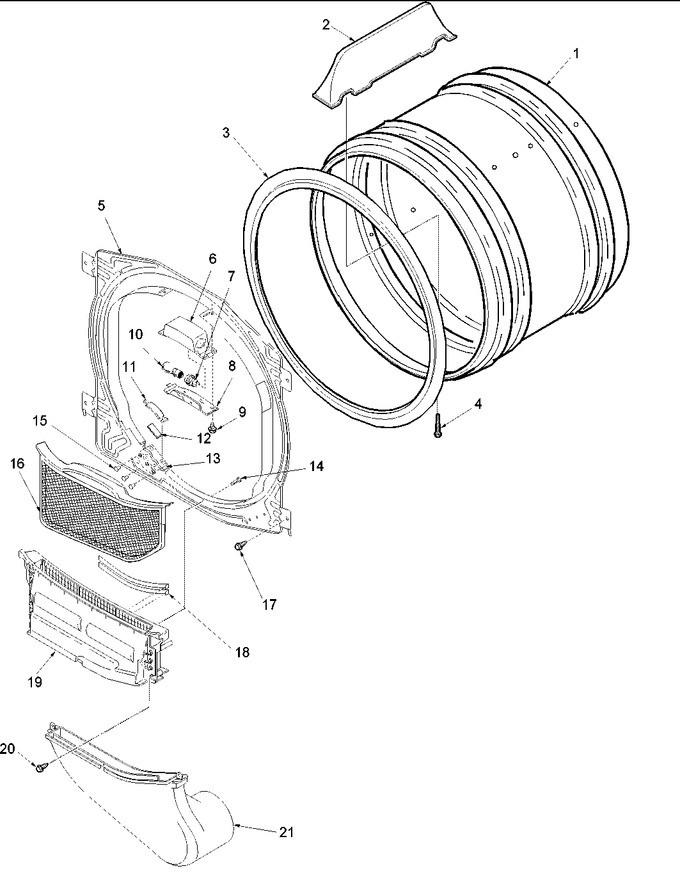

04 - Front Bulkhead, Air Duct & Cylinder


05 - Miscellaeous Information


06 - Motor And Fan Assembly


07 - Rear Bulkhead, Rollers & Air Duct


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	503657W		Assembly, Cylinder (wht)		Appelez-nous	-
2	503703		Baffle, Cylinder (wht)				$ 28.73
3	WP37001132		Seal, Cylinder   (Replaces: 501801)			Immediately	$ 54.31
4	Y62588		Screw, 10bt-12 X 1 Tap		Appelez-nous	-
5	D511033WP		Assy, Bulkhead   (Replaces: 505059WP)				$ 203.45
11	Y501676		Glide, Cyclinder Green		Appelez-nous	-
12	D510189		Pad, Felt   (Replaces: 500092)				$ 4.23
13	WP37001036		Bracket, Cylinder Glide   (Replaces: 37001036)			Immediately	$ 51.65
15	WP489128		Screw, No.8-32x3/8`` Hex   (Replaces: 37001031)				$ 9.79
16	WP37001142		Filter,lint-wht   (Replaces: Y503627)			Immediately	$ 112.23
19	505528		Assy, Air Duct		Appelez-nous	-
21	Y503626		Duct, Air Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
