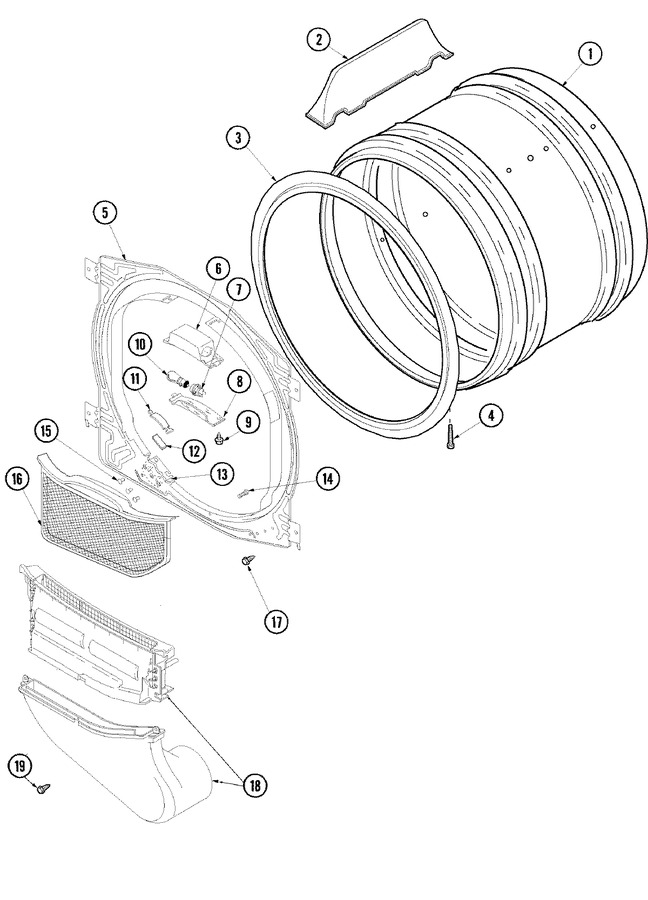

04 - Front Bulkhead, Air Duct & Drum


05 - Motor & Fan Assembly


06 - Rear Bulkhead, Rollers & Heater


07 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	504468P		Cylinder Assembly (stainless)	10			$ 609.70
2	503703		Baffle, Cylinder (wht)	10			$ 28.73
3	WP37001132		Seal, Cylinder   (Replaces: 501801)	10		Immediately	$ 54.31
4	Y62588		Screw, 10bt-12 X 1 Tap	10	Appelez-nous	-
5	503616WP		Assy, Frt Bulkhead (white)	10			$ 362.51
6	503622		Housing, Cylinder Light	10	Appelez-nous	-
7	D512108		Light Assembly   (Replaces: Y504452)	10			$ 31.43
8	40094301		Lens, Light	10			$ 5.70
9	500227		Screw, No.8ab-16x7/16ph	10			$ 14.82
10	W10857122		Light, Cylinder   (Replaces: Y60954)	10			$ 12.45
11	40116501		Glide,cylinder(tan)	10	Appelez-nous	-
12	WP500121		Pad, Felt-coin   (Replaces: 500121)	10		Immediately	$ 7.75
13	WP37001036		Bracket, Cylinder Glide   (Replaces: 37001036)	10		Immediately	$ 51.65
14	D500226		Screw, 8b-16x5/8 Tap   (Replaces: 500226)	10			$ 3.88
15	WP489128		Screw, No.8-32x3/8`` Hex   (Replaces: 37001031)	10			$ 9.79
16	WP37001142		Filter, Lint (wht)   (Replaces: 40124401)	10		Immediately	$ 112.23
17	D503688		Screw   (Replaces: 503688)	10		Immediately	$ 6.95
18	Y504806		Assembly, Air Duct	10	Appelez-nous	-
19	D501285		Screw, No.12 X 9/16   (Replaces: 501285)	10			$ 2.76
