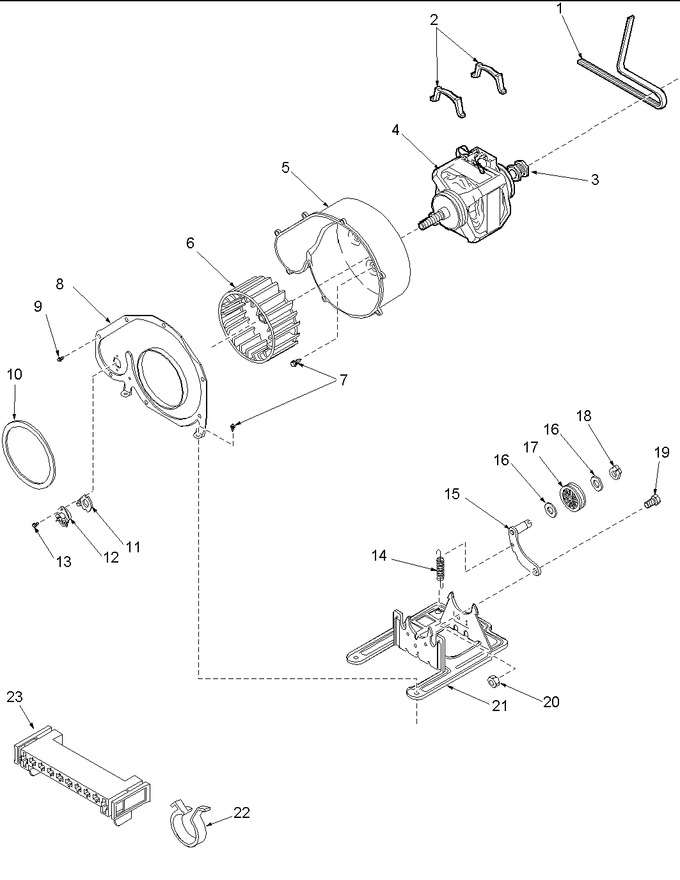

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP40111201 | Belt, Cylinder (Replaces: 40111201) |
|
Immediately | $ 16.81 | ||||
| 2 | WP660658 | Clamp, Motor Mount (Replaces: Y58047) |
|
$ 7.05 | |||||
| 3 | WP2200376 | Motor, Pully (Replaces: 40048501) |
|
Immediately | $ 146.83 | ||||
| 4 | D511574P | Assembly, Motor & Pulley (Replaces: 40099801) |
|
Immediately | $ 281.70 | ||||
| 5 | D511969WP | Housing, Blower (Replaces: 56020) |
|
$ 61.51 | |||||
| 6 | D510139P | Assembly, Blower Fan (Replaces: 56000) |
|
Immediately | $ 73.39 | ||||
| 8 | 500078 | Cover, Blower Housing |
|
- | |||||
| 10 | 40090001 | Seal, Blower Housing |
|
- | |||||
| 11 | 61623 | Heater, Thermostat |
|
$ 29.53 | |||||
| 12 | WP503979 | Thermostat (cycling Pk/wht) (Replaces: 503979) |
|
$ 97.33 | |||||
| 13 | WP489464 | Screw (Replaces: Y33561) |
|
Immediately | $ 7.05 | ||||
| 14 | WP56076 | Spring, Idler (Replaces: 56076) |
|
$ 65.70 | |||||
| 15 | WP37001144 | Assy, Idler Lever (Replaces: 40113501) |
|
$ 49.90 | |||||
| 16 | WP233520 | Washer, 501 Id X3/4 Odx (Replaces: 52549) |
|
Immediately | $ 7.16 | ||||
| 17 | WPY54414 | Assembly, Wheel & Bearing (Replaces: Y54414) |
|
Immediately | $ 19.11 | ||||
| 18 | WP23748 | Ring, Retaining (Replaces: 23748) |
|
Immediately | $ 10.75 | ||||
| 19 | D500824 | Screw, 1/4-20 Unc Hex (Replaces: 500824) |
|
$ 6.95 | |||||
| 20 | WPW10139757 | Nut, Hex Jam 1/4-20l (Replaces: 52566) |
|
$ 7.16 | |||||
| 21 | D518517 | Mount, Motor (Replaces: 503613) |
|
$ 30.65 | |||||
| 23 | D500338 | Housing, 10 Position (Replaces: 500338) |
|
$ 6.95 |
