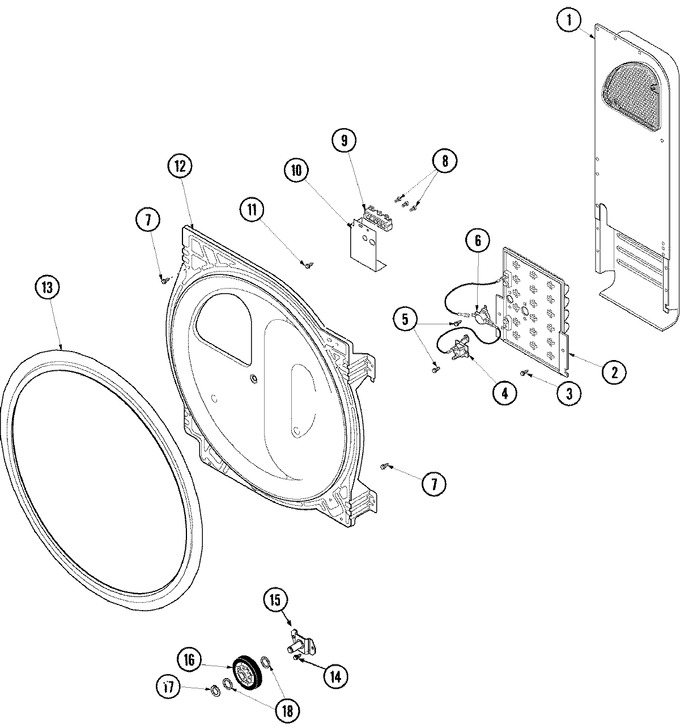

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 503605 | Assembly, Heater Duct | 10 |
|
- | ||||
| 2 | WPY503978 | Heater Element (Replaces: Y503978) | 10 |
|
Immediately | $ 57.66 | |||
| 3 | D503688 | Screw (Replaces: 503688) | 10 |
|
Immediately | $ 6.95 | |||
| 4 | WP40113801 | Fuse, Thermal (Replaces: 40113801) | 10 |
|
Immediately | $ 10.37 | |||
| 5 | WP3177991 | Screw, 8b-18 X 1/4 He (Replaces: 23222) | 10 |
|
Immediately | $ 6.47 | |||
| 6 | Y504237 | Thermostat, Limit | 10 |
|
- | ||||
| 7 | WP3351614 | Screw, 10-24x3/8 Hex (Replaces: 20530) | 10 |
|
Immediately | $ 6.26 | |||
| 8 | WP3400094 | Screw, No.10-32 X 3/8 (Replaces: Y61199) | 10 |
|
$ 7.14 | ||||
| 9 | 61923 | Block, Terminal | 10 |
|
$ 5.65 | ||||
| 10 | Y504185 | Shield, Terminal Block | 10 |
|
- | ||||
| 11 | D501285 | Screw, No.12 X 9/16 (Replaces: 501285) | 10 |
|
$ 2.76 | ||||
| 12 | D510905WP | Bulkhead, Rear (Replaces: 502614WP) | 10 |
|
$ 230.03 | ||||
| 13 | WP37001132 | Seal, Cylinder (Replaces: 501801) | 10 |
|
Immediately | $ 54.31 | |||
| 14 | D503688 | Screw (Replaces: 503688) | 10 |
|
Immediately | $ 6.95 | |||
| 15 | WP40113601 | Assy, Roller Brkt (Replaces: 40113601) | 10 |
|
$ 83.99 | ||||
| 16 | WP37001042 | Assembly, Cylinder Roller (Replaces: 500214) | 10 |
|
Immediately | $ 15.26 | |||
| 17 | WP23748 | Ring, Retaining (Replaces: 23748) | 10 |
|
Immediately | $ 10.75 | |||
| 18 | WP233520 | Washer, 501 Id X3/4 Odx (Replaces: 52549) | 10 |
|
Immediately | $ 7.16 |
