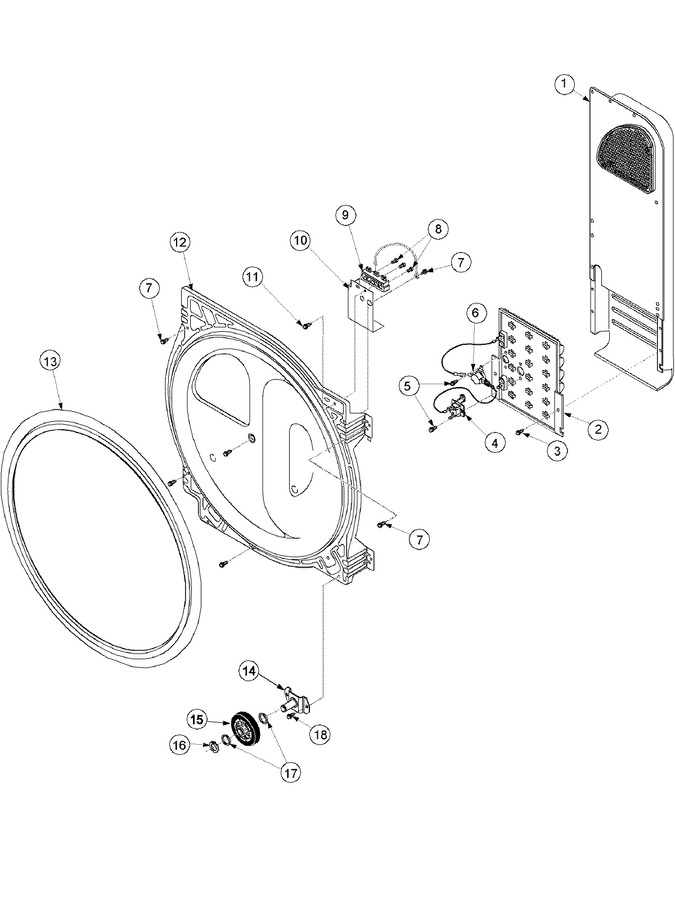

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 61927 | Heater Assembly |
|
Immediately | $ 127.58 | ||||
| 3 | D503688 | Screw (Replaces: 503688) |
|
Immediately | $ 6.95 | ||||
| 4 | WP40113801 | Fuse, Thermal (Replaces: 40113801) |
|
Immediately | $ 10.37 | ||||
| 5 | WP3177991 | Screw, 8b-18 X 1/4 He (Replaces: 23222) |
|
Immediately | $ 6.47 | ||||
| 6 | Y504237 | Thermostat, Limit |
|
- | |||||
| 7 | WP3351614 | Screw, 10-24x3/8 Hex (Replaces: 20530) |
|
Immediately | $ 6.26 | ||||
| 8 | WP3400094 | Screw, No.10-32 X 3/8 (Replaces: Y61199) |
|
$ 7.14 | |||||
| 9 | 61923 | Block, Terminal |
|
$ 5.65 | |||||
| 10 | 40111601 | Shield, Terminal |
|
- | |||||
| 11 | D501285 | Screw, No.12 X 9/16 (Replaces: 501285) |
|
$ 2.76 | |||||
| 12 | D510905WP | Bulkhead, Rear (Replaces: 502614WP) |
|
$ 230.03 | |||||
| 13 | WP37001132 | Seal, Cylinder (Replaces: 501801) |
|
Immediately | $ 54.31 | ||||
| 14 | WP40113601 | Assy, Roller Brkt (Replaces: 40113601) |
|
$ 83.99 | |||||
| 15 | WP37001042 | Assembly, Cylinder Roller (Replaces: 500214) |
|
Immediately | $ 15.26 | ||||
| 16 | WP23748 | Ring, Retaining (Replaces: 23748) |
|
Immediately | $ 10.75 | ||||
| 17 | Y504082 | Washer, Wave |
|
$ 5.83 | |||||
| 18 | D503688 | Screw (Replaces: 503688) |
|
Immediately | $ 6.95 |
