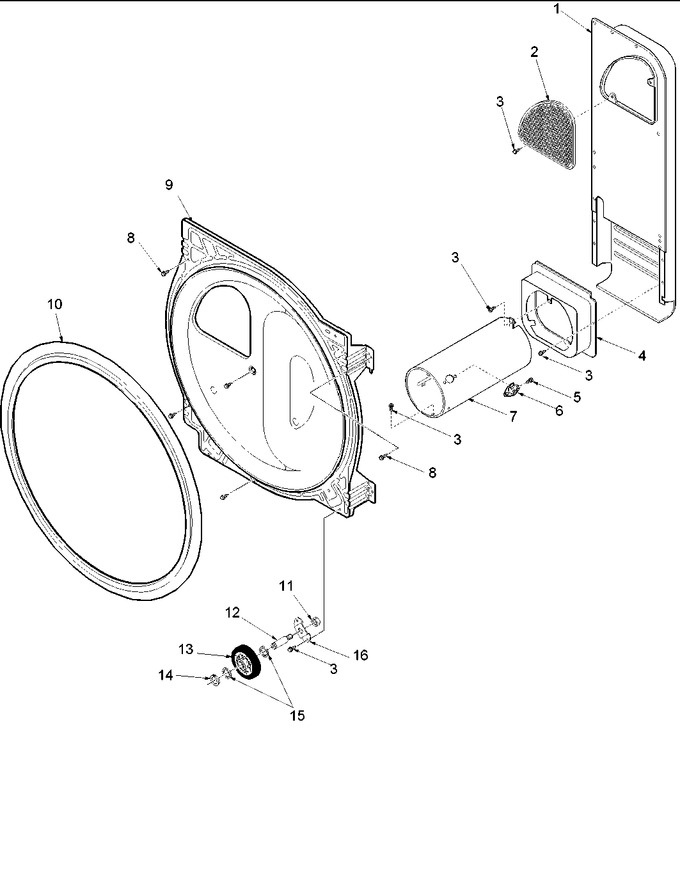

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	503490		Duct, Heat		Appelez-nous	-
2	500074		Cover, Heat Duct		Appelez-nous	-
4	500122		Shroud, Heat Duct		Appelez-nous	-
5	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
6	Y61886		Thermostat, Limit		Appelez-nous	-
7	Y61888		Duct, Combustion		Appelez-nous	-
9	504801WP		Bulkhead, Rear (wht)		Appelez-nous	-
10	WP37001132		Seal, Cylinder   (Replaces: 501801)			Immediately	$ 54.31
11	56156		Nut, 3/8-16 Serrated				$ 6.95
12	WP56461		Shaft   (Replaces: 56461)				$ 85.03
13	WP37001042		Assembly, Cylinder Roller   (Replaces: 500214)			Immediately	$ 15.26
14	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
15	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
16	WP40113601		Bracket, Cylinder Roller   (Replaces: 500062)				$ 83.99
