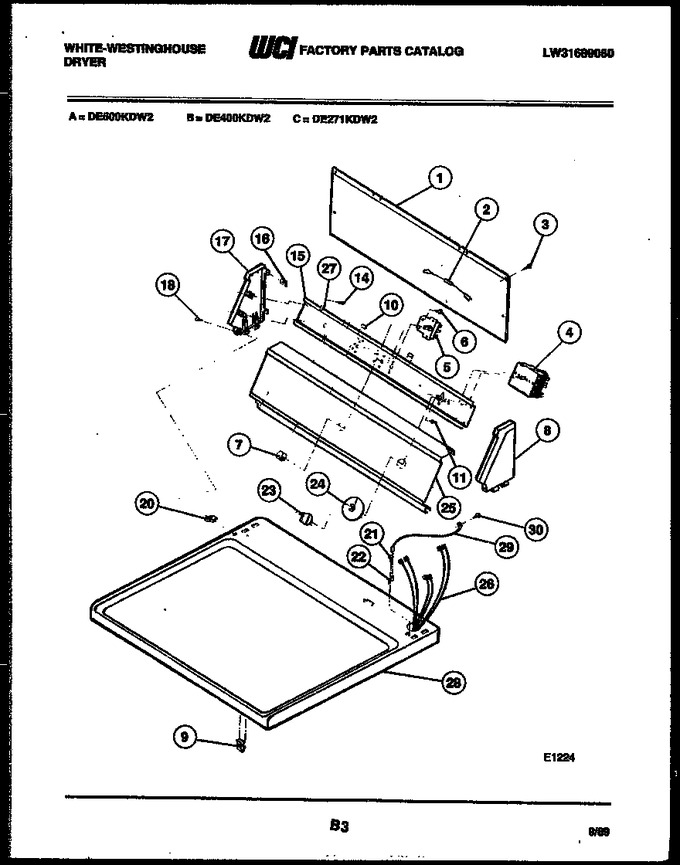

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Motor And Blower Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205838 | Back Cover |
|
- | |||||
| 2 | 3281110 | Resistor |
|
- | |||||
| 3 | 3261048 | Screw (4) |
|
- | |||||
| 4 | Q000634422 | Timer |
|
- | |||||
| 5 | 3201219 | Switch - Start |
|
- | |||||
| 6 | 08001544 | Screw |
|
- | |||||
| 7 | 3201221 | Push Button |
|
- | |||||
| 8 | 3205840 | End Cap-rh |
|
- | |||||
| 9 | 3205821 | Spring Catch (2) |
|
Immediately | $ 35.44 | ||||
| 10 | F142240-000 | Pad (2) |
|
- | |||||
| 11 | 3281096 | Screw (2) |
|
- | |||||
| 14 | 3281035 | Screw (4) |
|
- | |||||
| 15 | 3205841 | Mounting Bracket |
|
- | |||||
| 16 | F140666-000 | Clip (8) |
|
- | |||||
| 17 | 3205842 | End Cap-lh |
|
- | |||||
| 18 | 3281203 | Screw (2) |
|
- | |||||
| 20 | 3281192 | Grommet (2) |
|
- | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 22 | F079171-000 | Terminal |
|
- | |||||
| 23 | 08015435 | Knob-timer |
|
- | |||||
| 24 | 08015434 | Pointer |
|
- | |||||
| 25 | 3206032 | Trimplate |
|
- | |||||
| 26 | 3205982 | Harness |
|
- | |||||
| 27 | F142242-000 | Ground Clip |
|
- | |||||
| 28 | 3205824 | Top Panel-wheat |
|
- | |||||
| 29 | 3201308 | Ground Wire |
|
- | |||||
| 30 | 3281120 | Ground Screw |
|
- | |||||
| 26A | 3281103 | Wire Tie (3) (non-illustrated) |
|
- |
