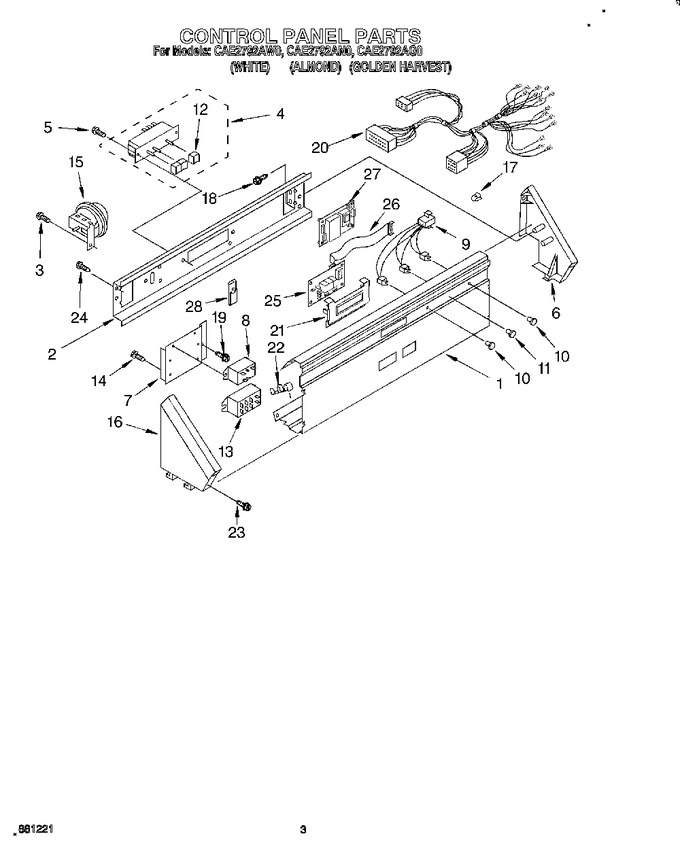

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3364155		Panel, Console		Appelez-nous	-
2	3361029		Bracket, Control				$ 34.04
3	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
4	3355913		Switch, Cycle Selector				$ 71.75
5	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 9.65
6	3347705		End Cap (r.h.)		Appelez-nous	-
7	3361361		Bracket, Relay		Appelez-nous	-
8	WP8566493		Relay, Power 12vdc   (Replaces: 697812)				$ 81.32
9	W10858647		Lights, Indicator   (Replaces: 3352457)				$ 35.18
10	WP3348109		Lens, Amber (2)   (Replaces: 3348109)			Immediately	$ 11.26
11	WP3348110		Lens, Yellow (1)   (Replaces: 3348110)				$ 6.96
12	3348587		Pushbutton (3)				$ 12.40
13	3361421		Relay, Power 12vac		Appelez-nous	-
14	WP313808		Screw, 6-32 X 1/4   (Replaces: 311932)				$ 6.84
15	3348542		Switch, Water Level		Appelez-nous	-
16	63789		Cap, End (l.h.)		Appelez-nous	-
17	689559		Nut, Push-in (2)		Appelez-nous	-
18	WPW10109200		Screw, End Cap To Bracket (4)   (Replaces: 97787)			Immediately	$ 7.20
19	WP681414		Screw, Ground 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
20	3364168		Harness, Relay		Appelez-nous	-
21	3361134		Lens, Display		Appelez-nous	-
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
23	WP388326		Screw, Console To Top (2)   (Replaces: 64211)				$ 7.30
24	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 6.75
25	3360997		Board, Display		Appelez-nous	-
27	3357941		Timer, 60 Hz.		Appelez-nous	-
28	3363338		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
