02 - Cabinet And Component Parts

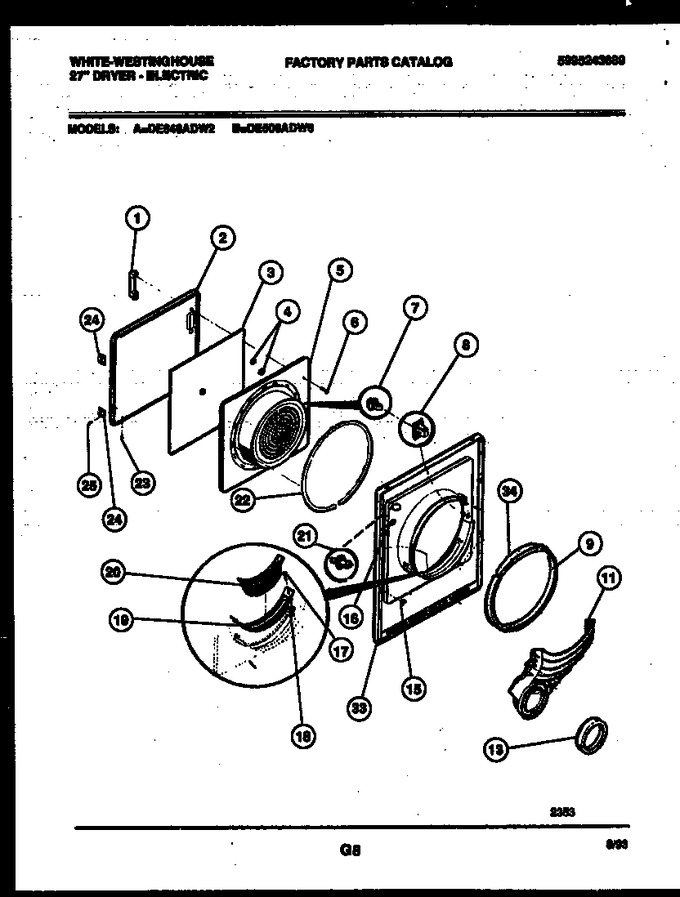

03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288839 | Handle |
|
- | |||||
| 2 | 3201203 | Door-outer-white |
|
- | |||||
| 3 | 5303281067 | Heat Shield |
|
- | |||||
| 4 | 3201205 | Spacer |
|
- | |||||
| 5 | 3201206 | Door, Inner, White |
|
- | |||||
| 6 | 5303281051 | Screw |
|
$ 4.52 | |||||
| 7 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 8 | 5366021400 | Door Catch (Replaces: 5307521419) |
|
Immediately | $ 55.99 | ||||
| 9 | 5303281049 | Seal |
|
$ 38.12 | |||||
| 11 | 5303937116 | Air Duct |
|
- | |||||
| 13 | 134417000 | Seal (Replaces: 5303281013) |
|
Immediately | $ 9.22 | ||||
| 15 | 5303281074 | Clip Guide (4) |
|
$ 18.27 | |||||
| 16 | 3281045 | Clip (4) |
|
- | |||||
| 17 | 3281178 | Screw (2) |
|
- | |||||
| 18 | 3281061 | Clip (2) |
|
$ 2.73 | |||||
| 19 | 5303270382 | Frame Lint Trap |
|
- | |||||
| 20 | 5303270382 | Lint Trap |
|
- | |||||
| 21 | 5308001614 | Door Switch |
|
- | |||||
| 22 | 5303201210 | Door Gasket |
|
$ 45.68 | |||||
| 23 | 5303161187 | Screw (2) |
|
- | |||||
| 24 | 5303281050 | Hinge, Door (2) |
|
$ 20.58 | |||||
| 25 | 5303161187 | Screw (8) |
|
- | |||||
| 33 | 5303293915 | Panel - Front - White |
|
- | |||||
| 34 | DE790 | Drum, Glide (Replaces: 131154800) |
|
Immediately | $ 40.53 |
