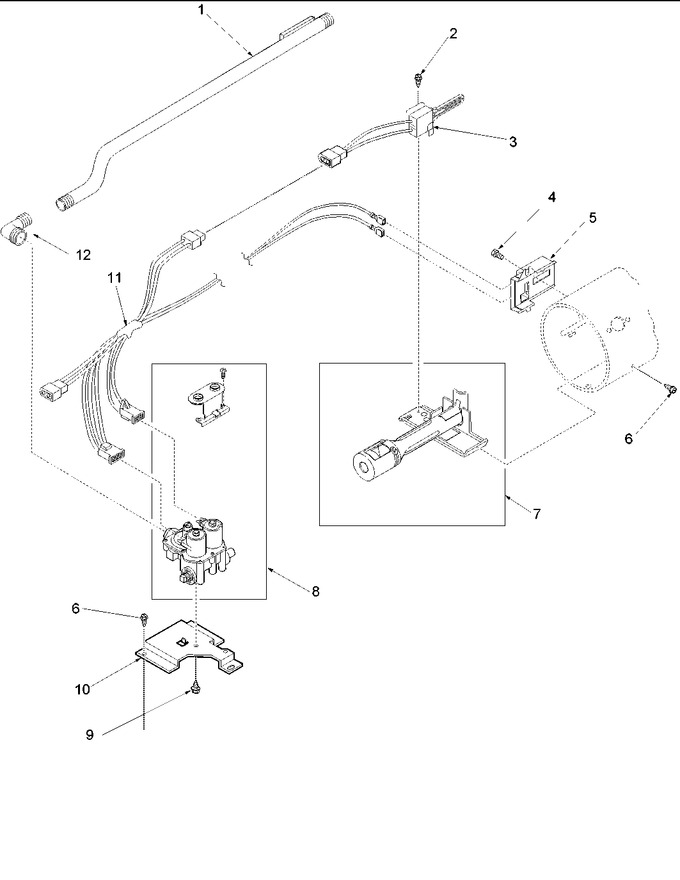

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 37001001 | Pipe, Lead-in |
|
- | |||||
| 2 | Sub. To D510151W | Screw, 6b-20x5/16 (Replaces: 51782) |
|
- | |||||
| 3 | WP37001308 | Igniter & Bracket Assembly (Replaces: 40069801) |
|
Immediately | $ 67.52 | ||||
| 4 | WP3177991 | Screw, 8b-18 X 1/4 He (Replaces: 23222) |
|
Immediately | $ 6.47 | ||||
| 5 | WP338906 | Sensor, Flame (Replaces: Y56231) |
|
Immediately | $ 46.72 | ||||
| 6 | D503688 | Screw (Replaces: 503688) |
|
Immediately | $ 6.95 | ||||
| 7 | Y56234 | Assembly, Burner |
|
- | |||||
| 8 | 37001002 | Assembly, Gas Valve |
|
$ 216.33 | |||||
| 9 | WP489128 | Screw, 8t-32x3/8 He (Replaces: 56124) |
|
$ 9.79 | |||||
| 10 | 500821 | Bracket, Mounting |
|
- | |||||
| 11 | 37001007 | Harness, Wire (gas Valve) |
|
$ 98.15 |
