SELECT A DIAGRAM

01 - Cabinet And Base


02 - Control Panel

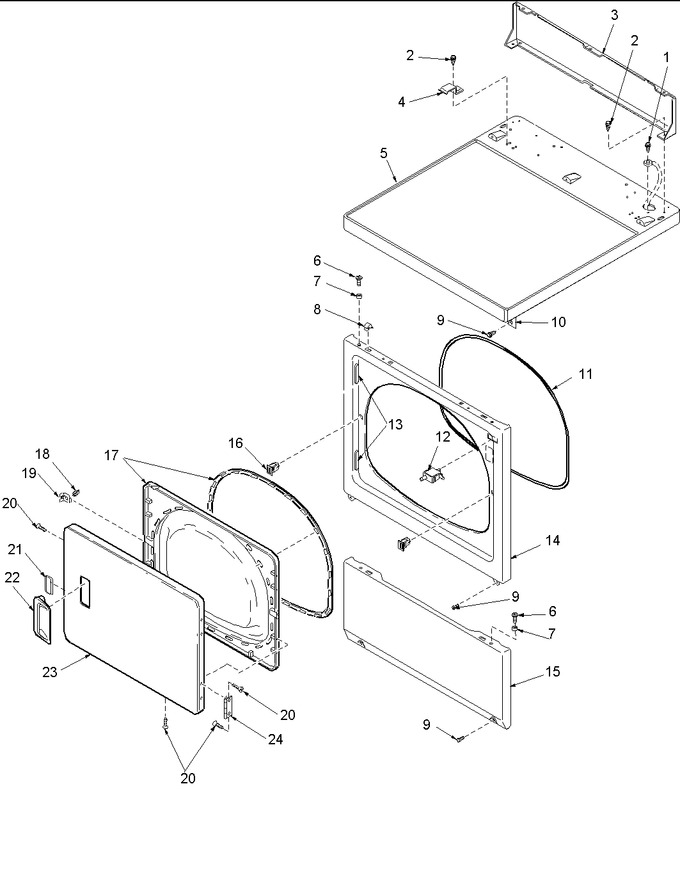

03 - Door And Front, Access, And Top Panels


04 - Front Bulkhead, Air Duct & Drum


05 - Gas Valve, Igniter & Gas Conversion Kit


06 - Miscellaeous Information


07 - Motor And Fan Assemblies


08 - Rear Bulkhead, Rollers & Air Duct Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	40121401		Panel, Home Hood Back		Appelez-nous	-
4	Y503876		Clip, Hold Down		Appelez-nous	-
5	40070301C		Panel, Top (bsq)		Appelez-nous	-
6	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
7	56079		Locator, Panel   (Replaces: 505187)			Immediately	$ 6.95
8	WP22001650		Clip, Spring   (Replaces: 56080)			Immediately	$ 7.34
10	40130801		Bracket,top Mount		Appelez-nous	-
11	504005		Seal, Front Panel				$ 49.57
12	W10169313		Switch, Door   (Replaces: Y504570)			Immediately	$ 29.18
13	503126		Plug, Hinge Hole		Appelez-nous	-
14	503656C		Panel,front-powder(bisque)		Appelez-nous	-
15	40045301C		Panel,access Bsq		Appelez-nous	-
16	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 24.51
17	503643W		Assembly, Seal & Liner		Appelez-nous	-
18	LA-1003		Strike, Door (metal)   (Replaces: 500039)			Immediately	$ 24.51
19	40116201		Bracket,door Strike				$ 5.51
21	505328		Wedge, Door Handle		Appelez-nous	-
22	503646C		Pull, Door (bsq)		Appelez-nous	-
23	503654C		Door,dryer-powder(bisque)		Appelez-nous	-
24	Y503676		Hinge, Door & Top				$ 40.54

    View Diagram in Separate Window       Print Part List
