01 - Cover


02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Motor And Blower Parts

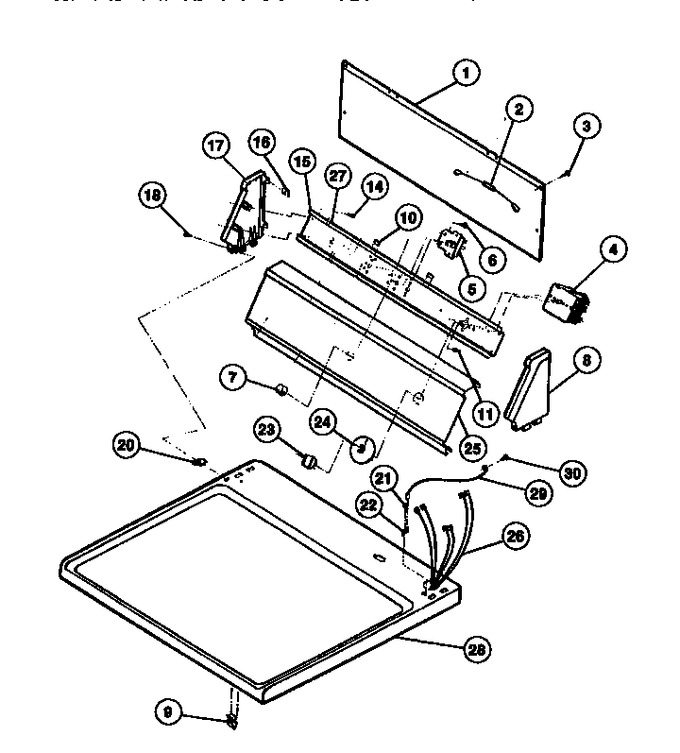

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3281186		Back Cover		Appelez-nous	-
2	3281110		Resistor		Appelez-nous	-
3	3261048		Screw (4)		Appelez-nous	-
4	Q000634422		Timer		Appelez-nous	-
5	3201219		Switch - Start		Appelez-nous	-
6	08001544		Screw		Appelez-nous	-
7	3201221		Push Button		Appelez-nous	-
8	3281191		End Cap, Rh		Appelez-nous	-
9	3281170		Spring-catch (2)		Appelez-nous	-
10	F142240-000		Pad (2)		Appelez-nous	-
11	3281096		Screw (2)		Appelez-nous	-
14	3281035		Screw (4)		Appelez-nous	-
15	3201223		Mounting Bracket		Appelez-nous	-
16	F140666-000		Clip (8)		Appelez-nous	-
17	3281189		End Cap, Lh		Appelez-nous	-
18	3281203		Screw (2)		Appelez-nous	-
20	3281192		Grommet (2)		Appelez-nous	-
21	08001689		Screw		Appelez-nous	-
22	F079171-000		Terminal		Appelez-nous	-
23	08015435		Knob-timer		Appelez-nous	-
24	08015434		Pointer		Appelez-nous	-
25	Q000633791		Trimplate		Appelez-nous	-
26	3201388		Harness		Appelez-nous	-
27	F142242-000		Ground Clip		Appelez-nous	-
28	3201231		Top Panel-white		Appelez-nous	-
29	3201308		Ground Wire		Appelez-nous	-
30	3281120		Ground Screw		Appelez-nous	-
26A	3281103		Wire Tie (3) (non-illustrated)		Appelez-nous	-
