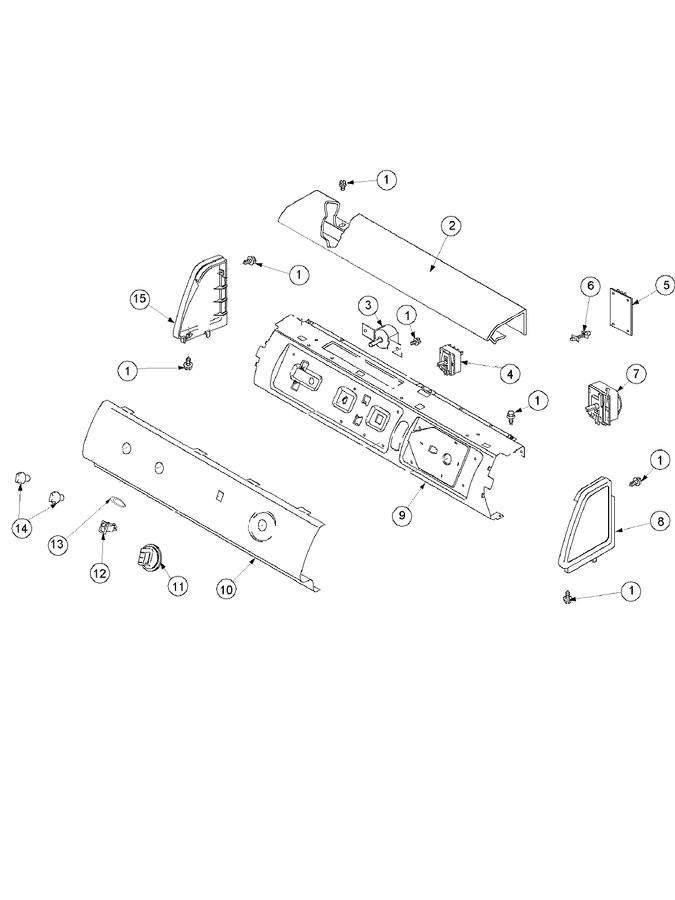

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
2	D505808W		Cover, Top (wht)   (Replaces: 503674W)	10			$ 91.43
3	62173		Switch, Temperature Select	10			$ 47.77
4	504166		Switch, Signal	10	Appelez-nous	-
5	40084301		Assy,moist Sensor Board	10	Appelez-nous	-
6	501523		Support, Circuit Board	10	Appelez-nous	-
7	37001022		Timer (5 Cycle)	12	Appelez-nous	-
7	40112801		Timer, 5 Cycle	10	Appelez-nous	-
8	40012701W		Endcap (rt-wht)	10	Appelez-nous	-
9	40039611		Panel,support	10	Appelez-nous	-
10	40071101W		Panel, Graphic (wht)	10	Appelez-nous	-
11	40013601W		Assy, Timer Knob (wht)	10	Appelez-nous	-
12	38424W		Switch, Rocker (wht)	10			$ 8.73
13	40083301		Medallion	10	Appelez-nous	-
14	40013401W		Assy, Selector Knob (wht)	10	Appelez-nous	-
15	40012702W		Endcap (lt-wht)	10	Appelez-nous	-
