SELECT A DIAGRAM

01 - Cabinet & Base


02 - Control Panel


03 - Door & Front, Access & Top Panels


04 - Front Bulkhead, Air Duct & Drum


05 - Gas Valve & Igniter


06 - Motor & Fan


07 - Rear Bulkhead, Roller & Air Duct (gas)


08 - Supplemental Information

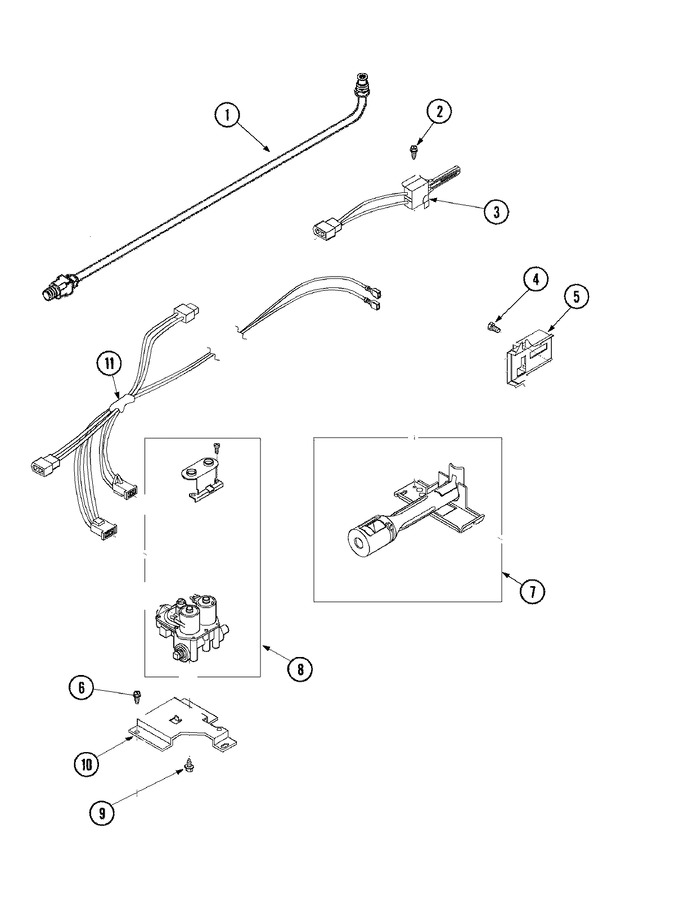

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	37001001		Pipe, Lead-in	10	Appelez-nous	-
2	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)	10	Appelez-nous	-
3	WP37001308		Igniter & Bracket Assembly   (Replaces: 40069801P)	10		Immediately	$ 67.52
4	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)	10		Immediately	$ 6.47
5	WP338906		Sensor, Flame   (Replaces: Y56231)	10		Immediately	$ 46.72
6	D503688		Screw   (Replaces: 503688)	10		Immediately	$ 6.95
7	Y56234		Assembly, Burner	10	Appelez-nous	-
8	37001002		Assembly, Gas Valve	10			$ 216.33
8	279834		Coil Kit, Gas Dryer Valve (2)   (Replaces: 12001349)	10		Immediately	$ 29.57
9	WP489128		Screw, 8t-32x3/8 He   (Replaces: 56124)	10			$ 9.79
10	500821		Bracket, Mounting	10	Appelez-nous	-
11	37001007		Harness, Wire (gas Valve)	10			$ 98.15

    View Diagram in Separate Window       Print Part List
