SELECT A DIAGRAM

01 - Cabinet And Base


02 - Control Panel


03 - Cylinder And Front Bulkhead


04 - Door, Access, And Top Panel


05 - Gas Valve And Igniter


06 - Motor And Fan Assembly


07 - Rear Bulkhead, Air Duct

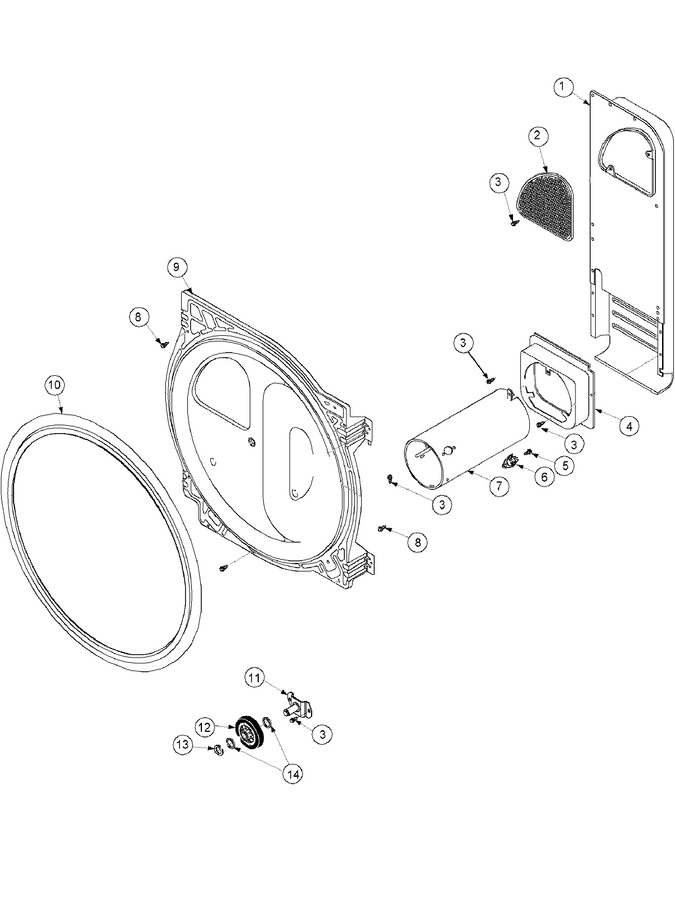

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	503605		Assembly, Heater Duct		Appelez-nous	-
2	500074		Cover, Heat Duct		Appelez-nous	-
3	D503688		Screw   (Replaces: 503688)			Immediately	$ 6.95
4	500122		Shroud, Heat Duct		Appelez-nous	-
5	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
6	Y61886		Thermostat, Limit		Appelez-nous	-
7	Y61888		Duct, Combustion		Appelez-nous	-
8	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
9	D510905WP		Bulkhead, Rear   (Replaces: 502614WP)				$ 230.03
10	WP37001132		Seal, Cylinder   (Replaces: 501801)			Immediately	$ 54.31
11	WP40113601		Bracket, Cylinder Roller   (Replaces: 500062)				$ 83.99
12	WP37001042		Assembly, Cylinder Roller   (Replaces: 500214)			Immediately	$ 15.26
13	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
14	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16

    View Diagram in Separate Window       Print Part List
