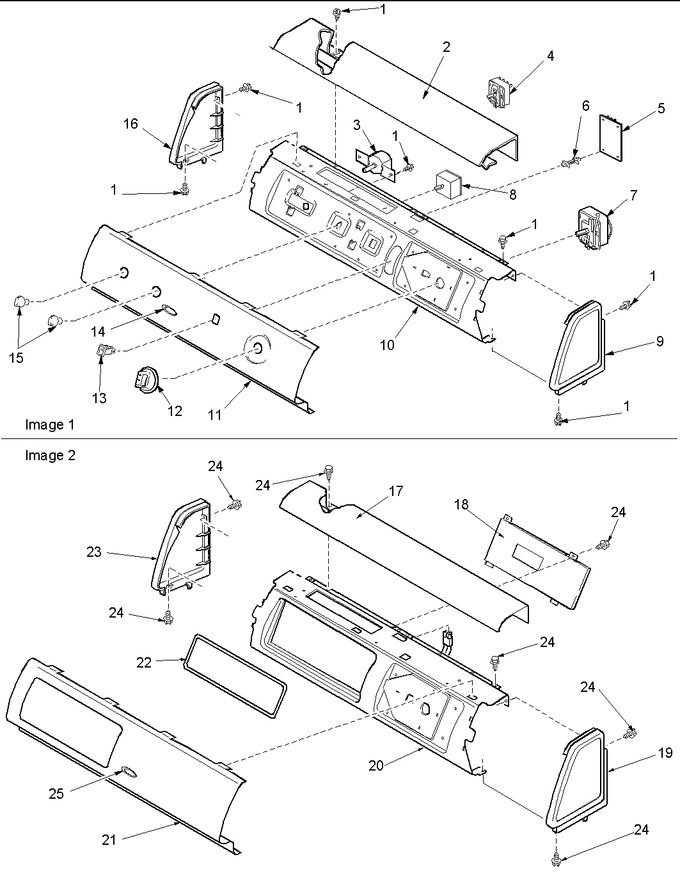

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) |
|
Immediately | $ 7.04 | ||||
| 2 | D505808W | Cover, Top (wht) (Replaces: 503674W) |
|
$ 91.43 | |||||
| 3 | 62173 | Switch, Temperature Select |
|
$ 47.77 | |||||
| 4 | 504166 | Switch, Signal |
|
- | |||||
| 5 | 40084301 | Assy,moist Sensor Board |
|
- | |||||
| 6 | 501523 | Support, Circuit Board |
|
- | |||||
| 7 | 40112801 | Timer, 5 Cycle |
|
- | |||||
| 9 | 40012701W | Endcap (rt-wht) |
|
- | |||||
| 10 | 40039611 | Panel,support |
|
- | |||||
| 11 | 40109903W | Panel,graphic(white) |
|
- | |||||
| 12 | 40013601W | Assy, Timer Knob (wht) |
|
- | |||||
| 13 | 38424W | Switch, Rocker (wht) |
|
$ 8.73 | |||||
| 14 | 40083301 | Medallion |
|
- | |||||
| 15 | 40013401W | Assy, Selector Knob (wht) |
|
- | |||||
| 16 | 40012702W | Endcap (lt-wht) |
|
- | |||||
| 25 | 40083301 | Medallion |
|
- | |||||
| NI | 40092601 | Harness, Hood Wire |
|
- | |||||
| NI | 40087201 | Assy,wiring Harness |
|
- |
