02 - Cabinet And Component Parts
03 - Door Parts

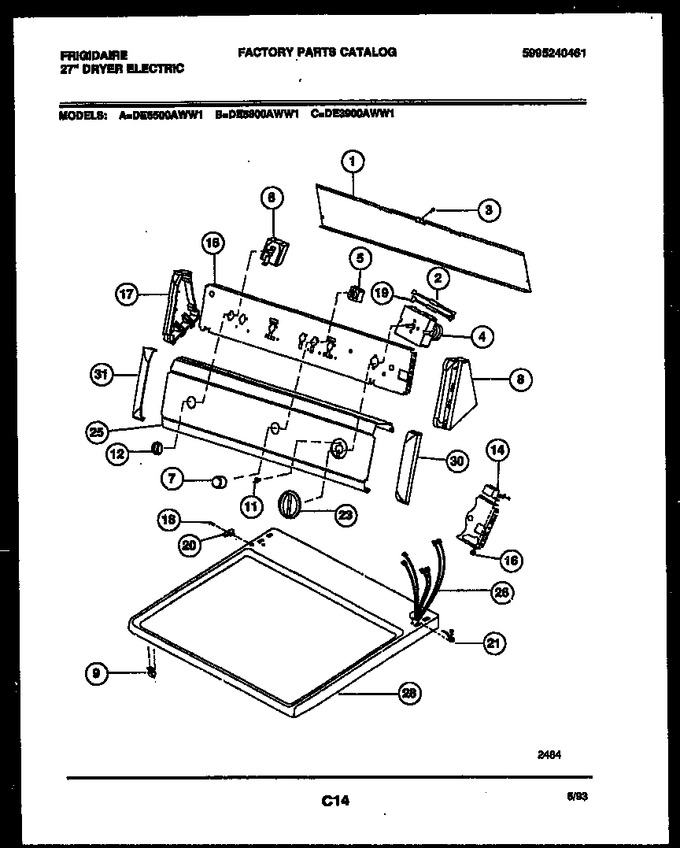

04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131141701 | Backsheet |
|
- | |||||
| 2 | 3205243 | Resistor |
|
- | |||||
| 3 | 131052100 | Screw (4) |
|
- | |||||
| 4 | 131062300 | Timer |
|
$ 243.81 | |||||
| 5 | 131048000 | Switch, Start |
|
- | |||||
| 7 | 131141300 | Pushbutton-white |
|
- | |||||
| 8 | 131122701 | End Cap-r.h.-white |
|
$ 53.29 | |||||
| 9 | 3205821 | Spring Catch |
|
Immediately | $ 35.44 | ||||
| 11 | 218359202 | Screw (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 14 | 5303210285 | Buzzer |
|
$ 65.78 | |||||
| 15 | 131157806 | Bracket Controls |
|
- | |||||
| 16 | 5303015671 | Screw |
|
- | |||||
| 17 | 131122711 | End Cap-l.h.-white |
|
$ 58.38 | |||||
| 18 | 3205820 | Screw |
|
- | |||||
| 19 | 3205877 | Resistor |
|
$ 51.14 | |||||
| 20 | 5300503065 | Clip |
|
$ 6.09 | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 23 | 134011703 | Knob, Timer, White (Replaces: 131141001) |
|
Immediately | $ 58.56 | ||||
| 25 | 131175700 | Panel-control-white |
|
- | |||||
| 26 | 131112300 | Harness |
|
- | |||||
| 28 | 131130302 | Panel-top-white |
|
- | |||||
| 30 | 131122601 | Cover-cap-rh-white |
|
$ 47.20 | |||||
| 31 | 131122611 | Cover-cap-lh-white |
|
$ 42.21 |
