Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
2 3205243 Resistor Appelez-nous -
3 131052100 Screw (4) Appelez-nous -
4 131719100 Timer   (Replaces: 131063200) In-Stock Immediately $ 269.37

5 131048000 Switch, Start Appelez-nous -
6 131048200 Switch-temperature Special Order $ 193.03

7 131032900 Pushbutton Appelez-nous -
8 5303291352 End Cap-rh Special Order $ 56.49

9 3205821 Spring Catch In-Stock Immediately $ 35.44

10 131033300 Pushbutton (4) Appelez-nous -
11 218359202 Screw   (Replaces: 5303283289) Special Order $ 10.63

14 5303210285 Buzzer Special Order $ 65.78

15 5303291355 Bracket-controls Appelez-nous -
16 5303015671 Screw Appelez-nous -
17 5303291344 End Cap-lh Special Order $ 59.59

18 5303289526 Screw Appelez-nous -
20 5300503065 Clip Special Order $ 6.09

21 08001689 Screw Appelez-nous -
23 131118900 Knob-timer Appelez-nous -
25 131122400 Panel-control Appelez-nous -
26 131158600 Harness Appelez-nous -
28 131130304 Panel-top-almd Appelez-nous -
29 131062202 Jumper Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

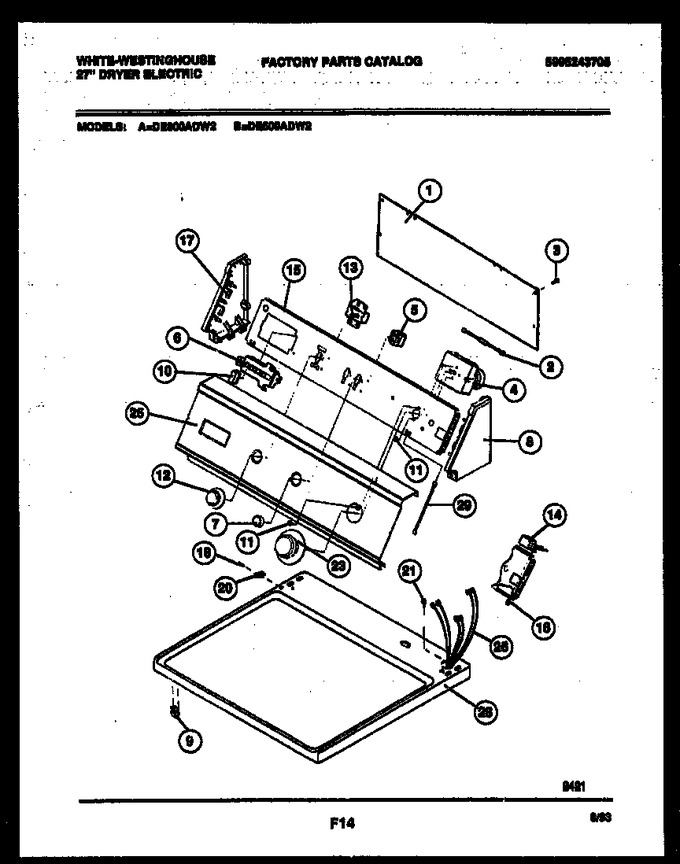

Diagram for DE600ADD2
