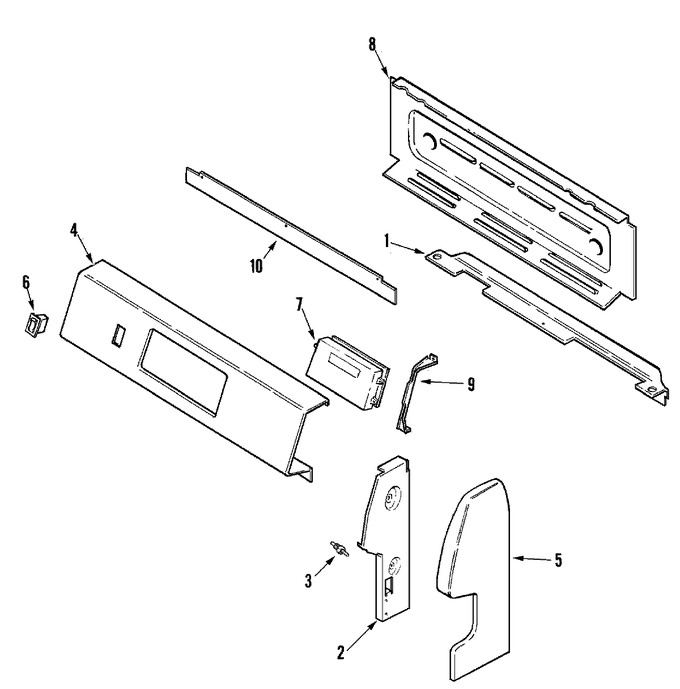

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Supplimental Information
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005047 | Shield, Vent Deflector | 10 |
|
- | ||||
| 2 | 74002403 | Bracket, Panel (rt) | 10 |
|
- | ||||
| 2 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 2 | 74002402 | Bracket, Panel (lt) | 10 |
|
- | ||||
| 3 | 74002404 | Pin, Main Top Hinge | 10 |
|
- | ||||
| 4 | 74002762 | Panel, Control (blk) | 10 |
|
- | ||||
| 5 | 74002656 | End Cap, Control Pnl (lt-blk) | 10 |
|
- | ||||
| 5 | 74002432 | Screw (1 3/16``-blk) | 10 |
|
- | ||||
| 5 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 5 | 74002655 | End Cap, Control Pnl (rt-blk) | 10 |
|
- | ||||
| 6 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 7 | W10799767 | Clock (blk) (Replaces: 74006099) | 10 |
|
$ 493.35 | ||||
| 8 | 74006536 | Cover, Wire (2 5/8`` X 2) | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74005320 | Housing, Control Panel | 10 |
|
- | ||||
| 9 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 9 | 74003827 | Bracket, Clock | 10 |
|
- | ||||
| 10 | 74002447 | Shield, Sight | 10 |
|
- |
