SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Top Assembly


07 - Wiring Information

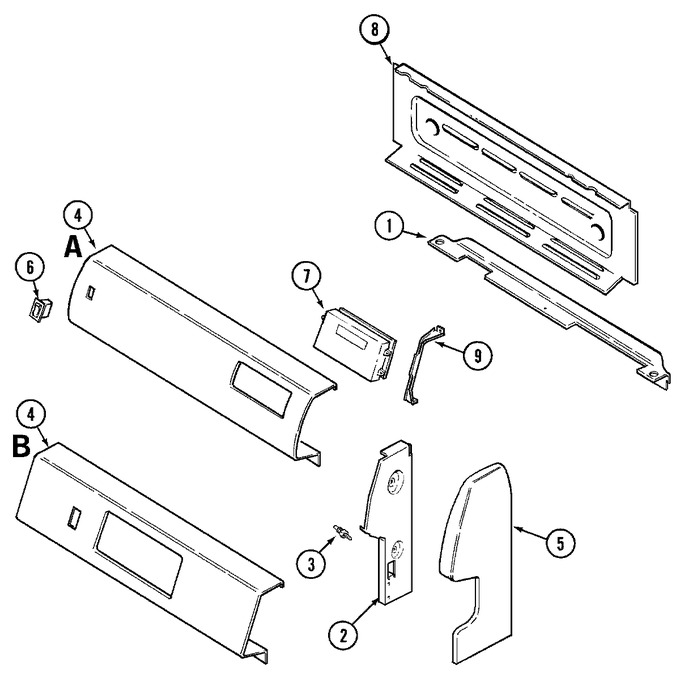

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003182		Shield, Vent Deflector	10	Appelez-nous	-
1	74005047		Shield, Vent Deflector	12	Appelez-nous	-
2	74002403		Bracket, Panel (rt)	10	Appelez-nous	-
2	74002402		Bracket, Panel (lt)	10	Appelez-nous	-
2	W10828565		Screw, Black   (Replaces: 7101P270-60)	10			$ 6.70
3	74002404		Pin, Main Top Hinge	10	Appelez-nous	-
4	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
4	74004587		Panel, Control (wht)----na	10	Appelez-nous	-
4	74005276		Panel, Control (wht)	12	Appelez-nous	-
5	74002439		End Cap, Panel (lt-wht)	10	Appelez-nous	-
5	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
5	74002451		Screw (1 3/16``-wht)	10	Appelez-nous	-
5	74002438		End Cap, Panel (rt-wht)	10	Appelez-nous	-
6	7403P200-60		Switch, Rocker (wht)	10	Appelez-nous	-
7	74004803		Clock (wht)	11	Appelez-nous	-
7	7101P348-60		Screw (wht)	10	Appelez-nous	-
7	74006691		Clock (wht)	17	Appelez-nous	-
7	74004588		Clock (wht)	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	74002450		Housing, Control Panel	10	Appelez-nous	-
8	74005146		Housing, Control Panel	12	Appelez-nous	-
9	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	10			$ 6.98
9	74002449		Bracket, Clock	10	Appelez-nous	-
NI	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
NI	74003828		Extension, Vent Deflector	10	Appelez-nous	-
NI	74004589		Harness, Control Panel	10	Appelez-nous	-
NI	74005147		Harness, Control Panel	12	Appelez-nous	-
NI	16008701		Manual, Use & Care (frch)	10	Appelez-nous	-
NI	74002355		Manual, Use & Care	10	Appelez-nous	-
NI	16010161		Manual, Srvc Elec/gas Range	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
