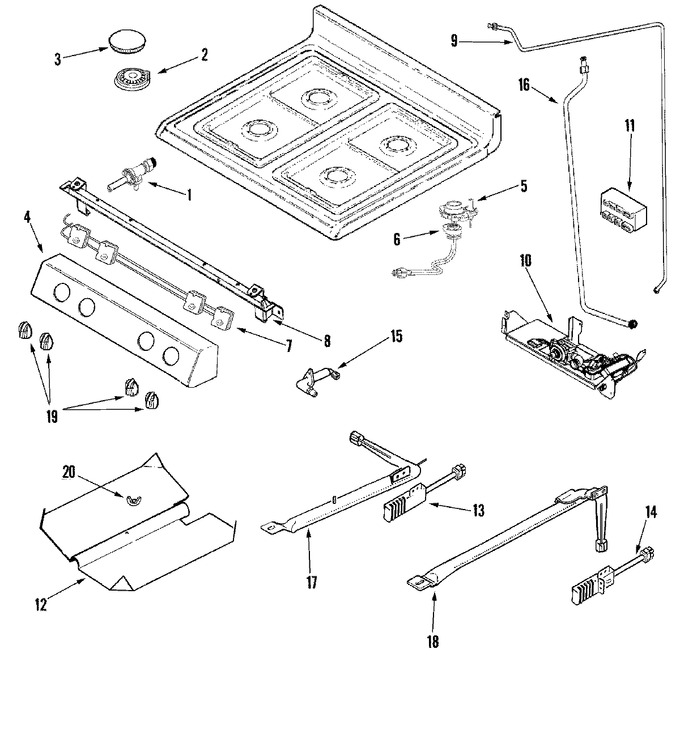

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010836 | Valve, Burner (4k Capreci) | 11 |
|
- | ||||
| 1 | 74010622 | Valve, Burner (10k Capreci) | 11 |
|
- | ||||
| 2 | W11772394 | Screw, Self Tapping (Replaces: 74007410) | 11 |
|
Immediately | $ 10.94 | |||
| 2 | WPW10406797 | Base, Burner (Replaces: 74007698) | 11 |
|
$ 79.64 | ||||
| 2 | WPW10406243 | Base, Burner (5k) (Replaces: 74007411) | 11 |
|
Immediately | $ 33.50 | |||
| 3 | WP74007925 | Cap, Burner (med-blk) (Replaces: 74007925) | 11 |
|
$ 86.81 | ||||
| 3 | WP3191898 | Cap, Burner (smr-blk) (Replaces: 74007416) | 11 |
|
$ 60.86 | ||||
| 4 | 74008847 | Panel, Manifold (stl) | 11 |
|
- | ||||
| 4 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 11 |
|
Immediately | $ 12.65 | |||
| 5 | WP74009958 | Ignitor, Top Burner Assy. (Replaces: 74009958) | 11 |
|
Immediately | $ 28.85 | |||
| 6 | 74010625 | Orifice Holder/tube Asy (rf) | 11 |
|
- | ||||
| 6 | 74010627 | Orifice Holder/tube Asy (lr) | 11 |
|
- | ||||
| 6 | 74010626 | Orifice Holder/tube Asy (lf) | 11 |
|
- | ||||
| 6 | 74010624 | Orifice Holder/tube Asy (rr) | 11 |
|
- | ||||
| 7 | WP74010630 | Harness, Switch (Replaces: 74010630) | 11 |
|
Immediately | $ 213.06 | |||
| 8 | 74008809 | Pipe, Manifold | 11 |
|
- | ||||
| 9 | 74008829 | Tubing, Supply | 11 |
|
- | ||||
| 9 | 71003231 | Screw, Valve | 11 |
|
- | ||||
| 10 | 74010621 | Valve/regulator Assembly | 11 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 11 | 74008821 | Module, Spark | 11 |
|
$ 212.63 | ||||
| 12 | 3601P336-45 | Baffle, Broil Burner (Replaces: 74008819) | 11 |
|
$ 194.65 | ||||
| 13 | 74007498 | Igniter, Oven | 11 |
|
Immediately | $ 78.40 | |||
| 13 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 11 |
|
$ 4.29 | ||||
| 14 | WP7432P136-60 | Ignitor, Fs Bake/broil (Replaces: 74008064) | 11 |
|
Immediately | $ 84.62 | |||
| 14 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 11 |
|
$ 4.29 | ||||
| 15 | 74010623 | Fitting, Broil Burner | 11 |
|
- | ||||
| 15 | 74009062 | Orifice Hood No.57 | 11 |
|
- | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 16 | 74008830 | Tubing, Broil | 11 |
|
$ 74.95 | ||||
| 17 | 74008820 | Burner, Broil | 11 |
|
- | ||||
| 18 | 31945701 | Burner, Bake | 11 |
|
- | ||||
| 19 | 74008850 | Knob, Burner (blk) | 11 |
|
$ 19.70 | ||||
| 20 | 7103P030-60 | Nut, Wing | 11 |
|
$ 6.37 |
