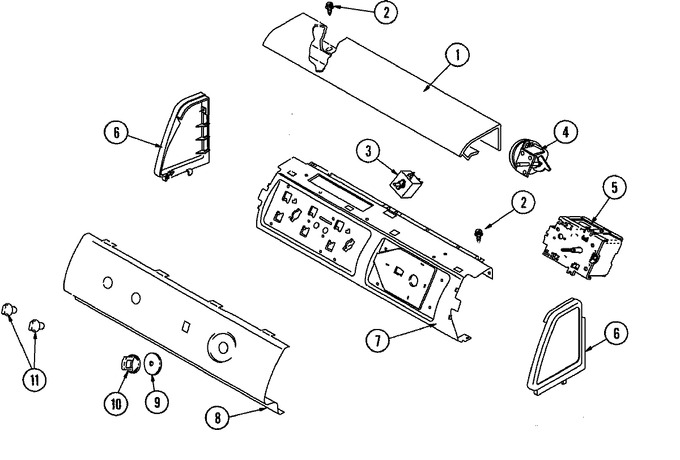

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D505808W		Cover, Top (wht)   (Replaces: 503674W)	10			$ 91.43
2	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
3	40077101		Switch, Temperature Select	10	Appelez-nous	-
4	40077201		Switch, Pressure (3 Pos)	10	Appelez-nous	-
5	40058701		Timer,6 Cycle(mallory)	10	Appelez-nous	-
6	40012702W		Endcap (lt-wht)	10	Appelez-nous	-
6	40012701W		Endcap (rt-wht)	10	Appelez-nous	-
7	40039601		Support, Control Panel	10	Appelez-nous	-
8	40072304W		Panel,graphic(white)	10	Appelez-nous	-
8	40083301		Medallion	10	Appelez-nous	-
9	40013701W		Dial, Timer Knob (wht)	10	Appelez-nous	-
10	40014001W		Assy, Timer Knob (wht)	10	Appelez-nous	-
11	40013401W		Assy, Selector Knob (wht)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
