1	21001521		Top, Agitator	17			$ 164.02
2	WP22002947		Screw   (Replaces: 21001510)	17			$ 10.51
3	WP22002933		Screw   (Replaces: 25-7953)	17			$ 6.91
4	WPW10309247		Screw, Agitator Retention   (Replaces: 25-8004)	17			$ 32.57
5	35-3685		Gasket, Basket To Centerpost	17			$ 36.70
6	35-3686		Gasket, Tub To Housing	17			$ 5.85
7	WP3400504		Screw, Shoulder   (Replaces: 25-7967)	17			$ 6.47
8	35-2328		Seal, Tub Top	17			$ 49.43
9	21001528		Cap, Agitator	17	Appelez-nous	-
10	21001529		Basket Assembly (plastic)	17			$ 173.58
11	35-2978		Seal, Tub/housing	17			$ 5.85
12	35-3700		Tub Assembly (plastic)	17			$ 236.85
13	21001531		Top, Tub (plastic)	17			$ 90.03
14	21001530		Base, Agitator	17			$ 96.61

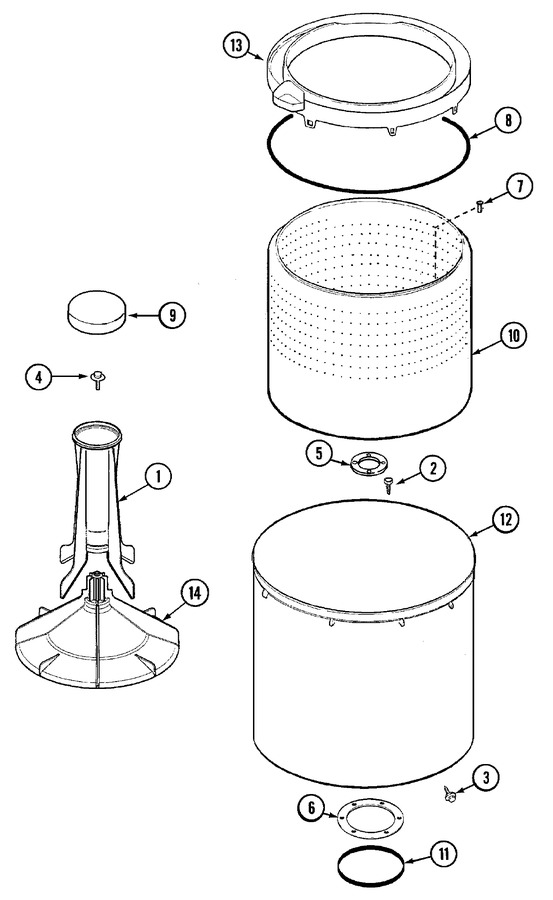

    View Diagram in Separate Window       Print Part List
