01 - Cover Sheet


02 - Oven, Cabinet

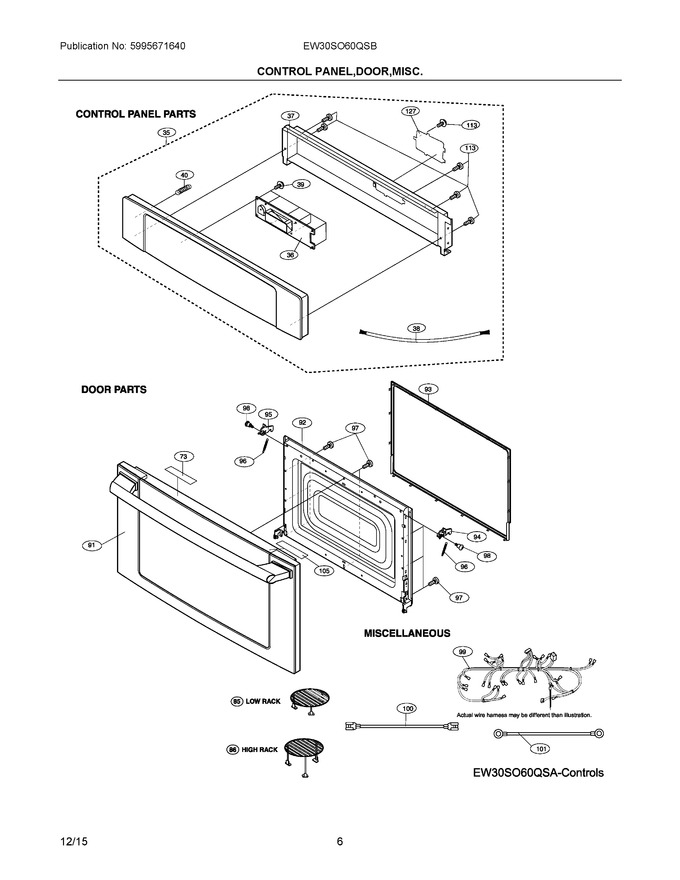

03 - Control Panel, Door, Misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	5304504301		Touch Control Assy, Key Pad		Appelez-nous	-
36	5304470557		Display Board, Cpu				$ 268.21
37	5304470558		Bracket, Control Mount				$ 169.39
38	5304470561		Wiring Harness, Power Supply		Appelez-nous	-
39	5304458568		Screw,, 3 Mm X 10 Mm		Appelez-nous	-
40	5304470560		Spring, Grounding				$ 15.08
73	5304440346		Label, User Caution, French				$ 34.73
85	5304498741		Rack Assembly, Broiling Trivit, Low		Appelez-nous	-
86	5304498742		Rack Assembly, Baking, High		Appelez-nous	-
91	5304498743		Frame, Outer Door, With Handle				$ 1,166.60
92	5304471512		Panel, Inner Door				$ 357.92
93	5304470579		Frame, Inner Door, Choke Cover				$ 87.48
94	5304491054		Latch Head, Right Side				$ 54.58
95	5304490142		Latch Head, Left Side			Immediately	$ 58.56
96	5304501834		Spring, Latch Head				$ 41.11
97	5304451561		Screw, 4 Mm X 8 Mm				$ 16.63
98	5304470583		Screw				$ 13.01
99	5304480652		Harness, Wiring, Main				$ 221.84
100	5304440331		Wire, High Voltage-a		Appelez-nous	-
101	5304461199		Wire, Ground, Cooling Fan				$ 25.52
105	5304451534		Label, User Caution, French				$ 3.55
113	5304451553		Screw, 4 Mm X 12 Mm				$ 14.89
127	5304498746		Plate, Control Panel, Rear Cover		Appelez-nous	-
