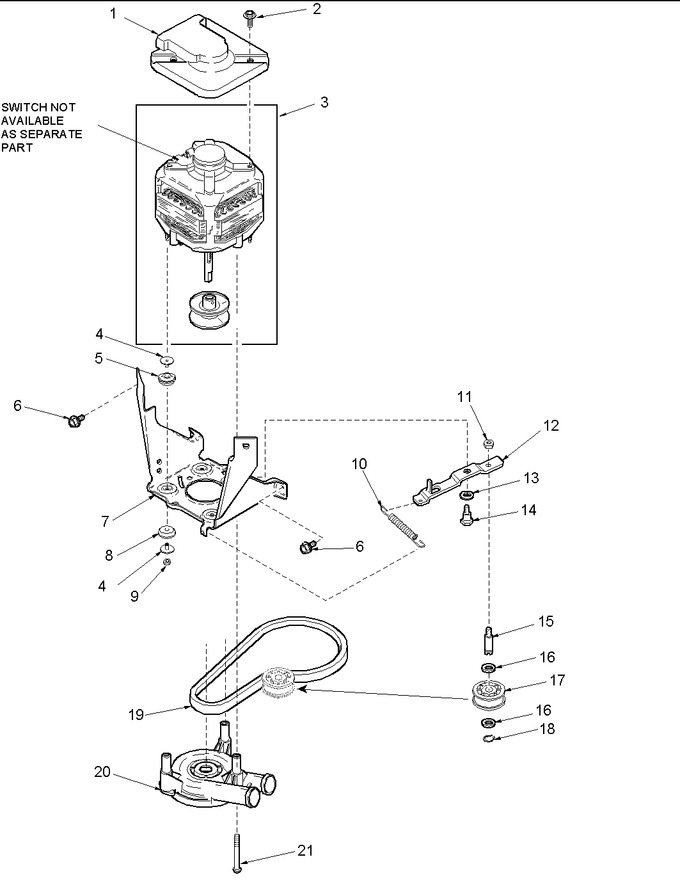

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40112301		Shield, Motor				$ 33.08
2	WP4312464		Screw, No.10x7/16 Id Hx   (Replaces: 40046701)				$ 6.26
3	40095001		Assy,motor 120v/60hz		Appelez-nous	-
4	40053701		Post, Isolator		Appelez-nous	-
5	40053801		Mount, Motor Upper		Appelez-nous	-
6	40105601		Screw, 5/6-18 X 1/2		Appelez-nous	-
7	40015501		Bracket,motor Mount		Appelez-nous	-
8	204449CP		Mount, Motor Lower   (Replaces: 40054301)		Appelez-nous	-
9	WPY707702		Locknut, 10-32   (Replaces: 40095101)			Immediately	$ 6.26
10	40061401		Spring, Idler Lever				$ 5.70
11	40038801		Jamnut, 3/8-16		Appelez-nous	-
12	40041001		Lever, Idler		Appelez-nous	-
13	40054701		Washer		Appelez-nous	-
14	40038901		Screw, 1/4-20				$ 40.68
15	WP56461		Shaft   (Replaces: 56461)				$ 85.03
16	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
17	205552P		Idler Pulley Assembly   (Replaces: 40045001)			Immediately	$ 19.34
18	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
19	37820		Belt,spin & Agitate   (Replaces: 40053602)			Immediately	$ 32.15
20	40040301		Assembly, Pump Complete		Appelez-nous	-
21	40063701		Screw, 10-16x1.75				$ 5.38
