Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10461200 Meter Case   (Replaces: 3406994) In-Stock Immediately $ 344.90

2 WP385421 Coin Funnel   (Replaces: 385421) In-Stock Immediately $ 66.78

3 339805 Screw, 10-32 X 3/16 Special Order $ 12.05

4 WP90406 Nut, Cage   (Replaces: 90406) Special Order $ 7.33

5 279950 Plate, Adapter (includes 2)   (Replaces: 3954761) In-Stock Immediately $ 26.00

6 3353994 Bolt (5/16 - 18 X 2 1/2) Appelez-nous -
6 W11715721 Bolt (5/16-24 X 1)   (Replaces: 3349065) Special Order $ 6.41

7 WP3400029 Nut   (Replaces: 3400029) In-Stock Immediately $ 6.98

8 W11283272 Door, Service   (Replaces: 3351136) Special Order $ 95.29

9 W11170663 Washer   (Replaces: 3400900) Special Order $ 3.89

10 WP3954812 Cushion, Case   (Replaces: 3954812) Special Order $ 27.99

11 340025 Wire, Ground Appelez-nous -
13 3353813 Plate, Mounting Special Order $ 47.08

16 W10841059 Screw, 10-16 X 3/4   (Replaces: 98445) Appelez-nous -
17 3347825 Plate, Mounting Appelez-nous -
18 3402784 Switch, Service Diagnostic Special Order $ 8.09

24 W11190039 Money Box With Key   (Replaces: 8316525) In-Stock Immediately $ 160.25

25 W11126319 Coin Chute   (Replaces: 8316520) In-Stock Immediately $ 279.80

25 8316265 Insert, 25 Appelez-nous -
25 W11312584 Insert, Blank   (Replaces: 8316264) Special Order $ 28.26

26 W10123497 Fascia, Disp (black) Appelez-nous -
27 W11315637 Security Lock & Cam Assembly   (Replaces: 8316526) In-Stock Immediately $ 36.42

28 WP8576635 Bolt, Slide Mechanism   (Replaces: 8318517) In-Stock Immediately $ 67.13

29 W11318367 Extension   (Replaces: 8316522) In-Stock Immediately $ 38.20

30 3400086 Screw, 10-32 X 3/8 Special Order $ 12.77

31 C4889201 Line- Suct Appelez-nous -
31 8316524 Kit, Decal Appelez-nous -
31 DTS60 Thermostat   (Replaces: B0592401) In-Stock Immediately $ 12.22


    View Diagram in Separate Window     Print Icon   Print Part List

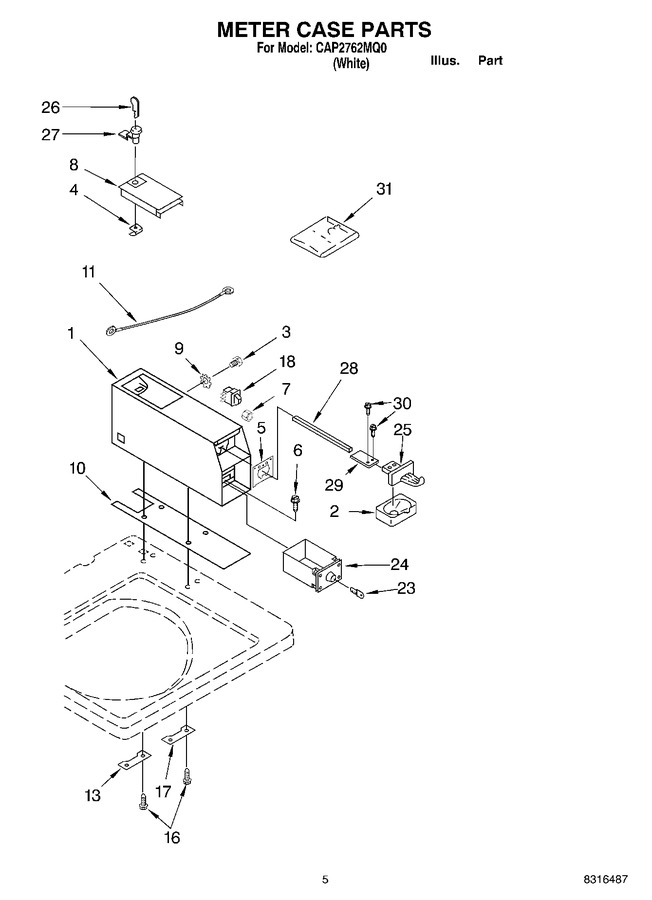

Diagram for CAP2762MQ0
